Model.manualsplit_applypatterns

Model.manualsplit_applypatterns(edge_split_count, triplets)

Splits shell elements with specific patterns, and automatically splits attached 1Ds.

Parameters:

• edge_split_count (int) –

  The number of split points on element edges. Valid values are ≥ 0.

  This is valid only for tria patterns 106, 107, and 108, and quad patterns 101, 102, 103, 104, and 105.

• triplets (hwString) –

  Uniquely determines a split pattern to be applied on a given element. This is a space separated and quoted list of triplets, with each triplet consisting of 3 colon separated values "Ai:Bi:Ci". These values are:

  Ai - The element ID.

  Bi - The split pattern ID. Valid tria patterns are 32, 33, 68, 80, 81, 82, 83, 84, 88, 106, 107, 108. Valid quad patterns are 10, 13, 15, 17, 19, 59, 66, 72, 73, 77, 78, 79, 85, 86, 87, 89, 101, 102, 103, 104, 105.

  Ci - The shell element side ID. Valid values are [0, n] where n = element edge/sides count.

  The split patterns are following below:

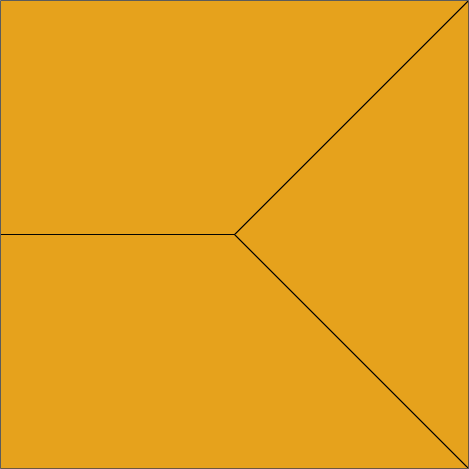

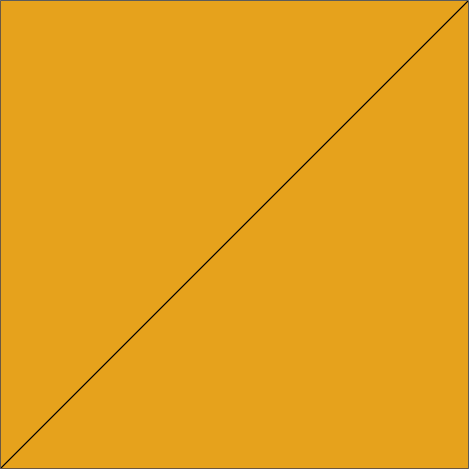

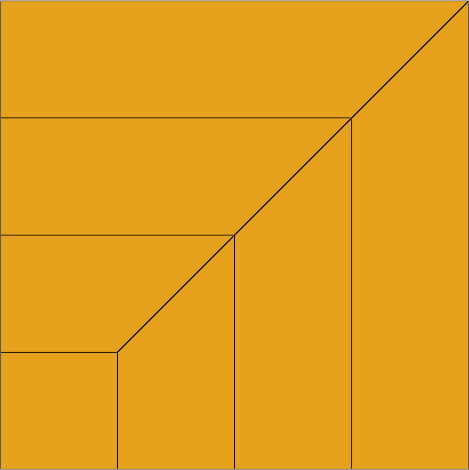

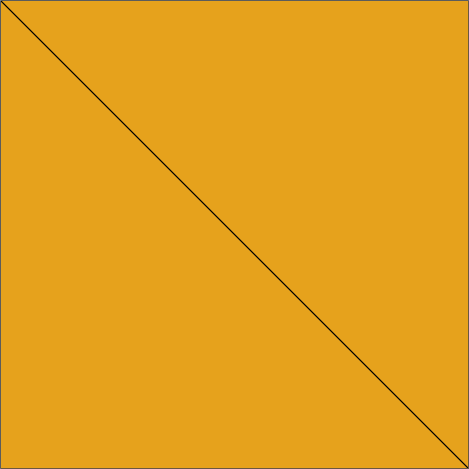

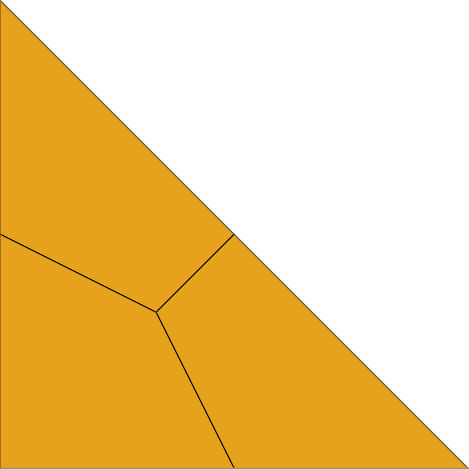

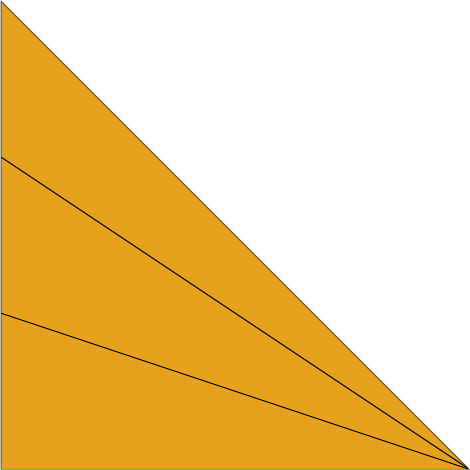

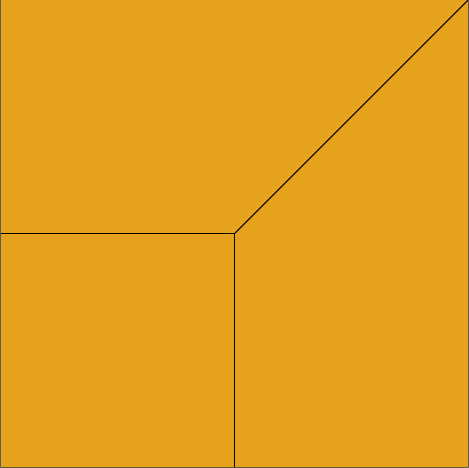

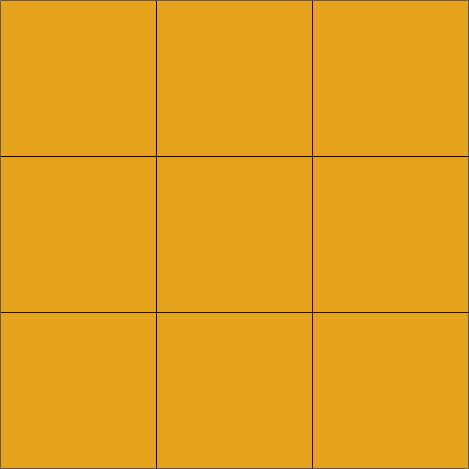

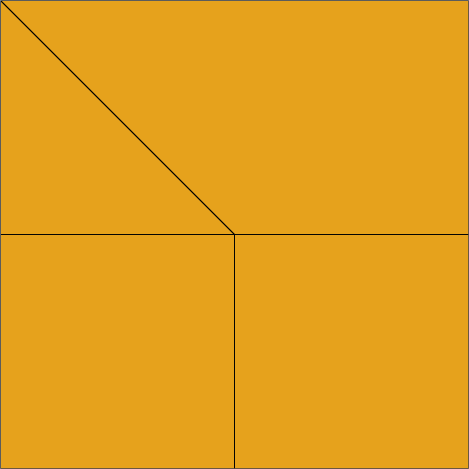

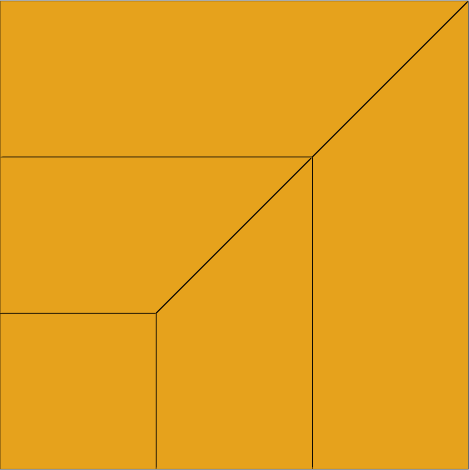

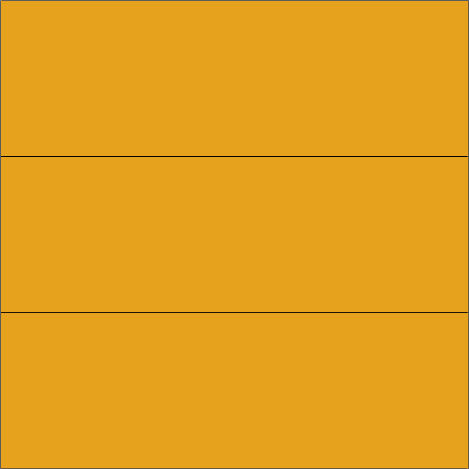

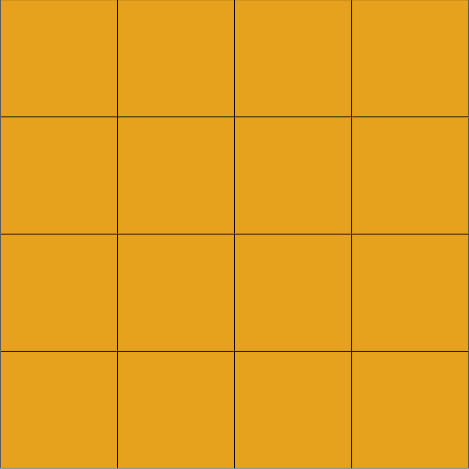

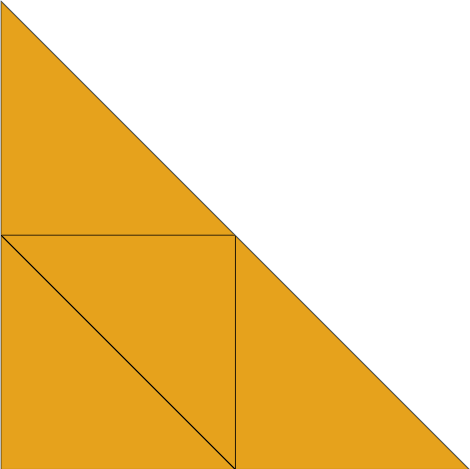

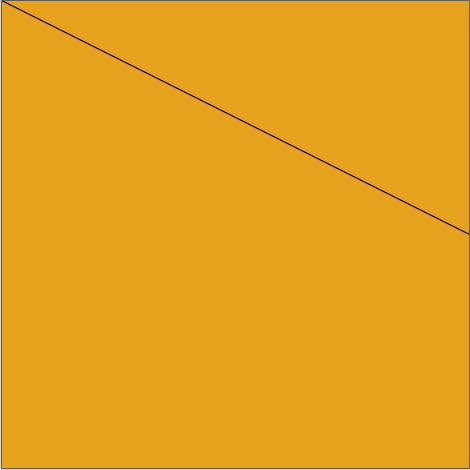

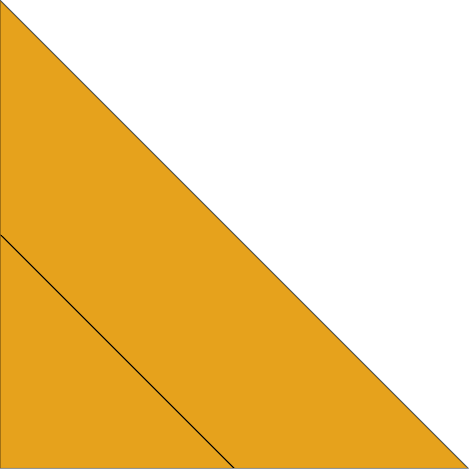

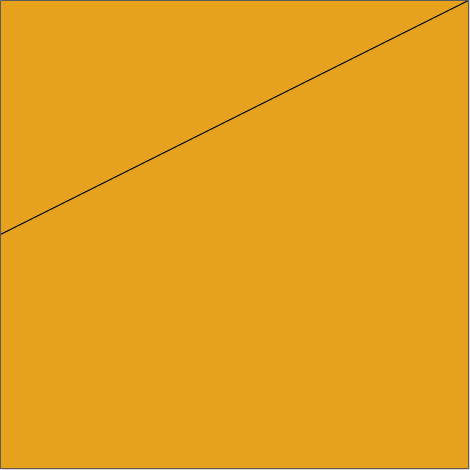

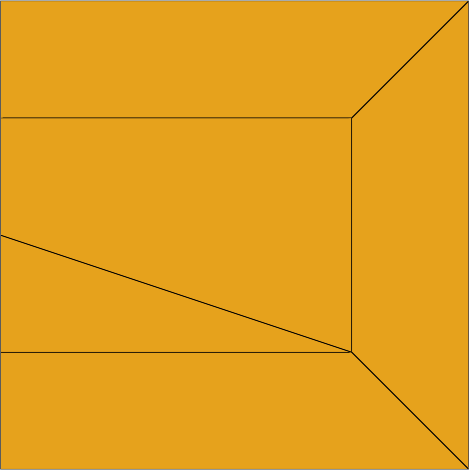

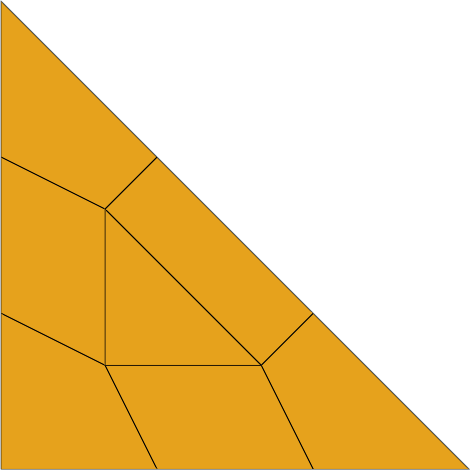

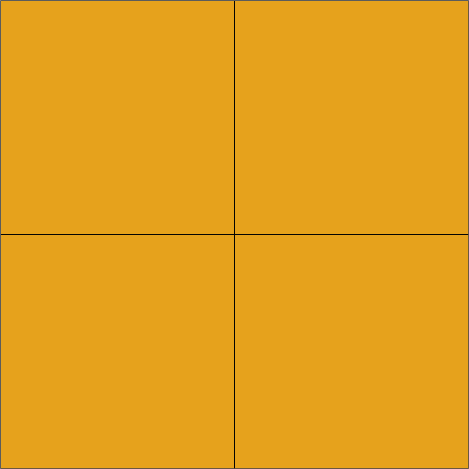

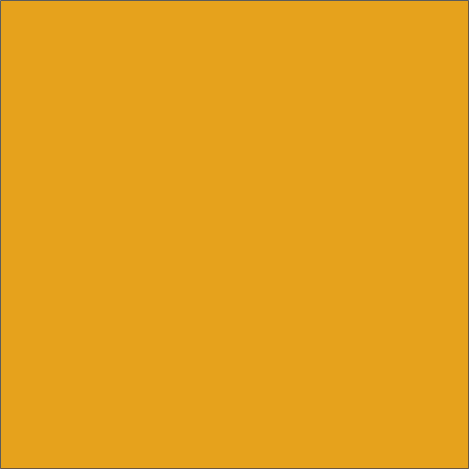

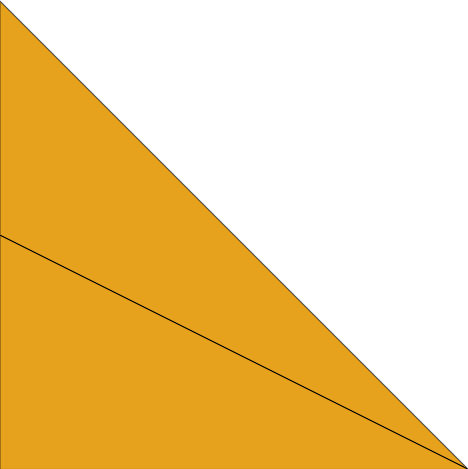

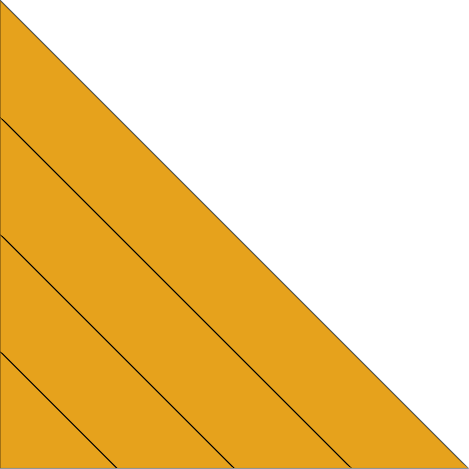

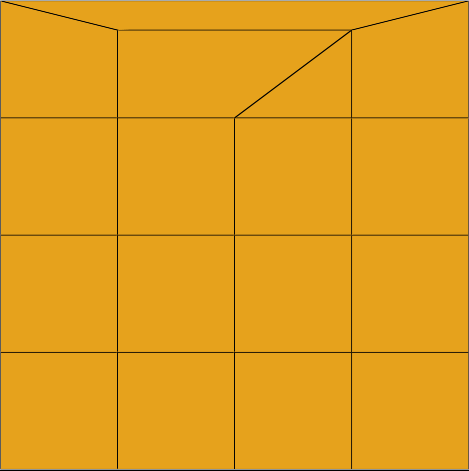

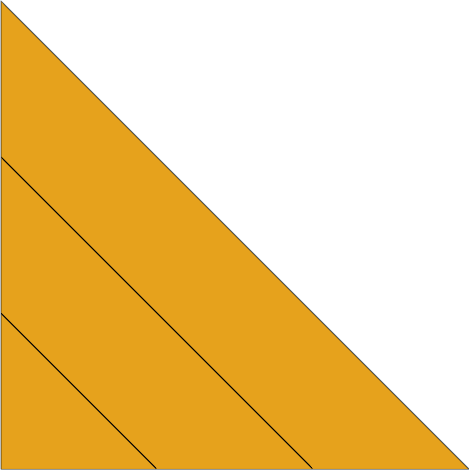

  Pattern Name	Pattern ID	Image

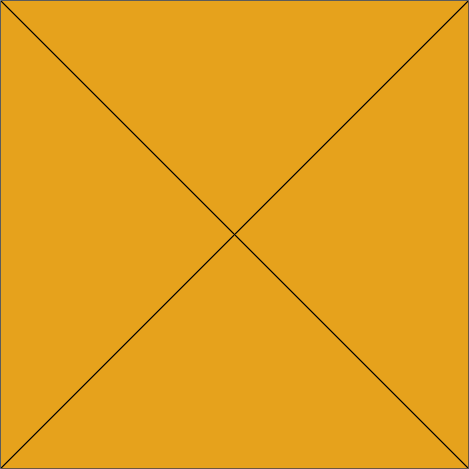

  Quad0000	10
  Quad0000	85
  Quad0000	86
  Quad0000	89

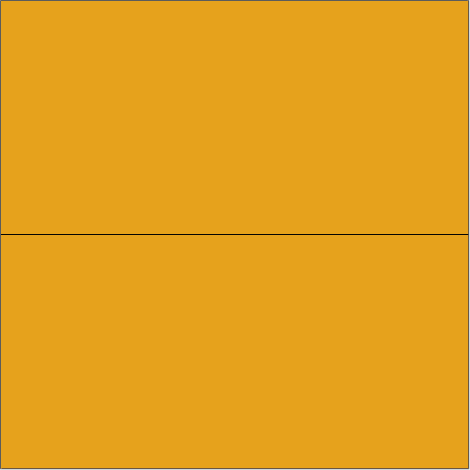

  Quad1000	17
  Quad1000	59
  Quad1000	87
  Quad1010	15
  Quad1100	13
  Quad1110	66
  Quad1111	19

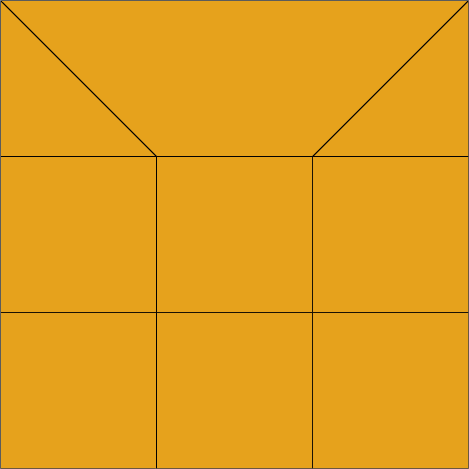

  Quad2000	72
  Quad2020	77
  Quad2200	73
  Quad2220	79
  Quad2222	78

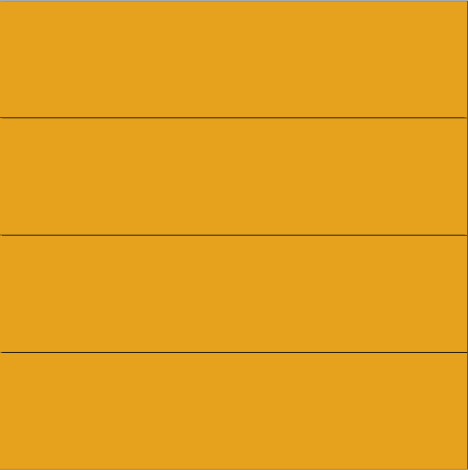

  QuadN000	101
  QuadN0N0	103
  QuadNN00	102
  QuadNNN0	104
  QuadNNNN	105

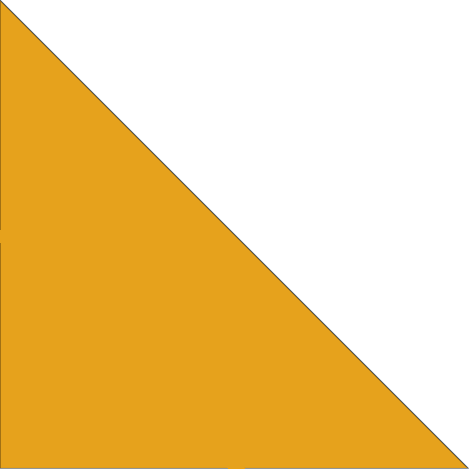

  Tria000	68

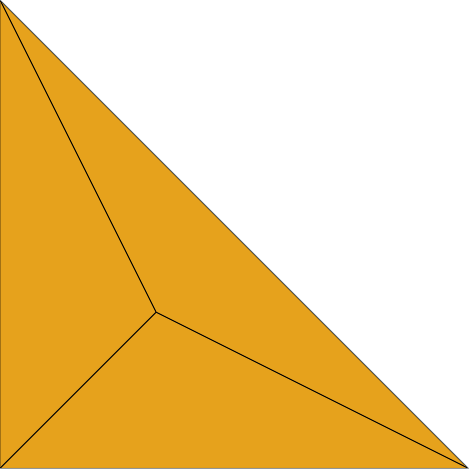

  Tria000	88
  Tria100	32
  Tria110	33
  Tria111	80
  Tria111	81
  Tria200	82
  Tria220	83
  Tria222	84

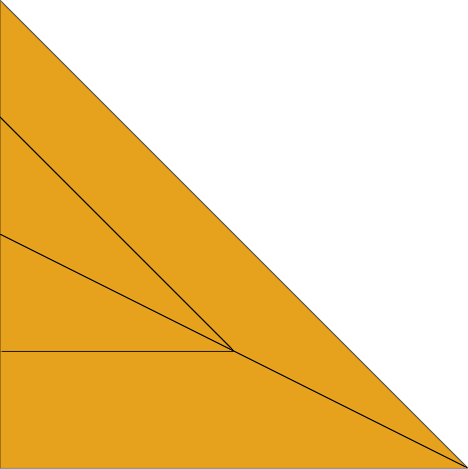

  TriaN00	106
  TriaNN0	107

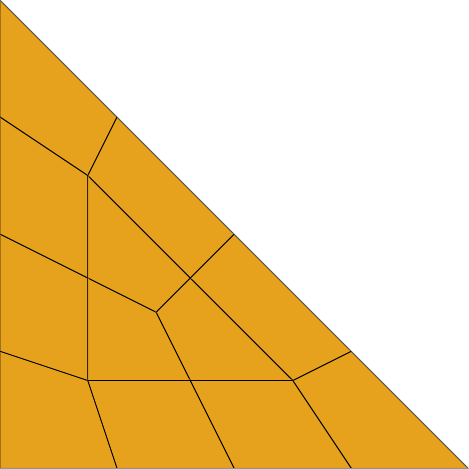

  TriaNNN	108

Examples

Split element with ID 100 with 4 edge splits, using pattern 106 and side 2

import hm
import hm.entities as ent

model = hm.Model()

model.manualsplit_applypatterns(edge_split_count=4, triplets="100:106:2")

Split multiple elements with 1 edge split, using different patterns and sides

import hm
import hm.entities as ent

model = hm.Model()

model.manualsplit_applypatterns(edge_split_count=1, triplets="4:17:1 14:89:0 47:86:0 61:17:3")
