Draw Contour

Block Category: Draw

Input Image Format

Input Image Requirements: Gray scale

Inputs:

      image: Gray scale image to which the contour is applied.

      Contour: Indicates the contour of the image.

      Hierarchy: If connected, indicates whether the parent-child contour hierarchy is observed.

Description: The Draw Contour block draws a contour around an image based on three inputs to the block.

You typically use this block in conjunction with the Find Contour block.

Thickness: Specifies the contour’s thickness as an integer greater than 0.

Example

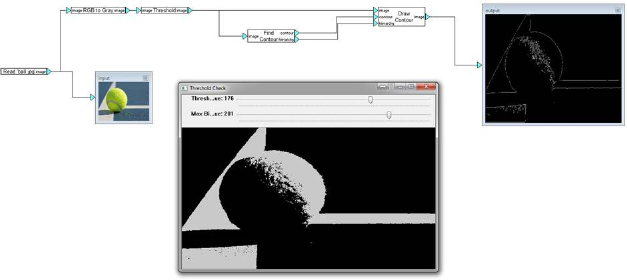

DrawContourExample
