Basic DC Motor-Permanent Magnet

Category: Toolbox > eDrives > eMotors (Legacy) > Motors


      Motor + (volts) & Motor – (volts): DC voltage.

      Load Reaction Torque Vector: Load reaction torque vector if external mechanical load is used.

Description: The Basic DC Motor-Permanent Magnet block is derived from the linear system model of a simple DC permanent magnet machine. It is assumed that the back EMF is equal to the torque constant, and that the torque current relation is indeed constant over the rotation of the motor.

Mechanical dynamics include typical parameters, such as rotor shaft inertia and viscous friction. In addition, nonlinear dissipative factors, including Coulomb friction and stiction models are provided. The Basic DC Motor-Permanent Magnet block can operate stand-alone to produce output displacement or velocity of the motor alone, or when a Rotational Load block is connected, combined dynamic response. When connected to the Rotational Load block , dynamic parameters are reflected back and combined with the motor dynamics by the linkage ratio. The linkage ratio is specified in the Rotational Load block. This creates proper dynamic motion of the combined motor-load connection. To connect a Basic DC Motor-Permanent Magnet block to the Rotational Load block, the rotor displacement and load reaction vector connections from each block must be wired together.

Rotor shaft position, velocity and motor current are provided for sensor connections in monitoring and feedback applications.

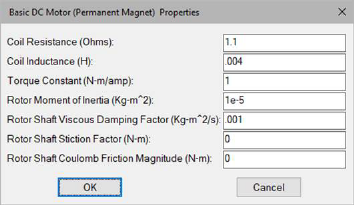

Coil Resistance: Indicates the line-to-line coil resistance.

Coil Inductance: Indicates the line-to-line coil inductance.

Torque Constant: Indicates the specified motor torque constant.

Rotor Moment of Inertia: Indicates the moment of inertia of the rotor with respect to the axis of rotation.

Rotor Shaft Coulomb Friction Magnitude: Allows specification of constant directional dissipative force (Coulomb model).


Rotor Shaft Stiction Factor: Allows specification of a stiction force value or break-away torque. This parameter is normally not specified by the motor manufacturer, but can be obtained experimentally.


Rotor Shaft Viscous Damping Factor: Indicates the factor that linearly relates viscous damping force to angular velocity. This parameter is normally not specified by the motor manufacturer, but can be determined experimentally.


Diagram name: Basic DC Motor

Location: Examples  > eMotors (Legacy) > Brush DC

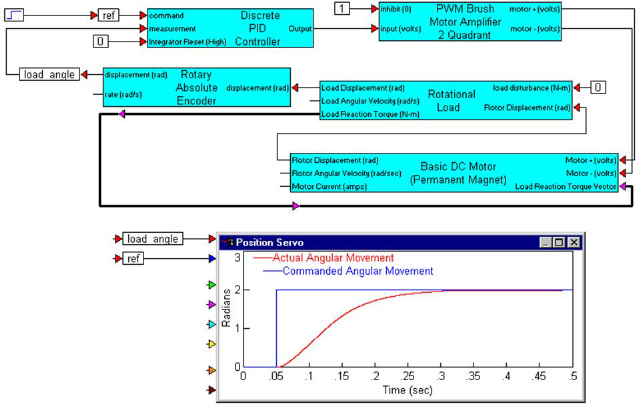

The following simulation example demonstrates a voltage-controlled servo loop for positioning a geared load (0.5 ratio) to multiply torque. The load is spring loaded by setting a torsional spring constant in the Rotational Load block. A Rotary Absolute Encoder block is coupled to the load and the measurement is fed back to a PID compensator for voltage control of the motor. A power amplifier of unity voltage gain with sufficient power gain to drive the motor is assumed. The motor is commanded to move 2 rad in the positive direction.
