Display Image

Block Category: Signal Consumer

Input Image Format

Input Image Requirements: None

Description: The Display Image block displays an image. When View > Display Mode is activated, the Display Image block is displayed in the diagram until you simulate the diagram.

Set display area to actual image size: Sets the pixel size of the display area to the pixel size of the image.

Title: Provides a name for the image. Titles can be up to 80 alphanumeric characters. The title appears in the Display Image title bar.

Example

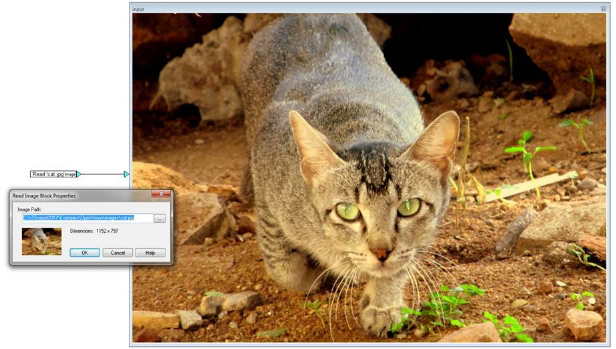

In this example, the image of a stalking cat is displayed at 1152 x 797.

DisplayImageExample
