Determining transition evaluation order

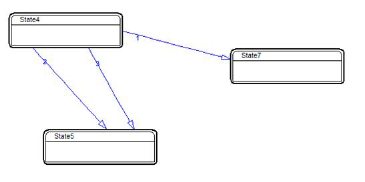

If you have more than one transition coming from a given state, the transitions are numbered according to their evaluation order. Transitions with lower numbers have higher priorities.

evaluationorder#1

evaluationorder#2

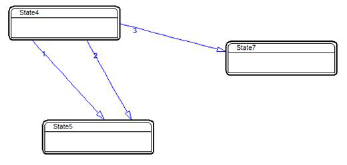

To change the evaluation order

1.    Right-click a transition.

2.    In the pop-up menu, select Reorder Transitions.

3.    Click the transitions in the order you want them evaluated.
