**Block Category:** Boolean, Fixed Point

**Inputs:** Real, complex, or fixed-point (scaled_int)
scalars, or vectors or matrices.

•**l:** numerator *x*_{1}.

•**r:** denominator *x*_{2}

**Description:** The < block generates an output
signal of 1 if and only if input signal *x*_{1} is less than input
signal *x*_{2}. Otherwise, the output is 0.

Right-click the < block to assign a different function to the block.

**1. Simple if-then-else construct**

Consider a variable *y* such that:

If* t* < 4 then *y* = 1; else *y* = 0

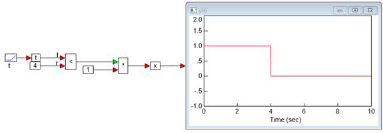

Assume that *t *is simulation time realized as:

By multiplying a constant value 1 with the output of the
< block, *y* is guaranteed to assume a value of 0 until the inequality
is true. When the inequality is true, *y* assumes a value equal to the
output of the * block.

**2. Modified if-then-else construct**

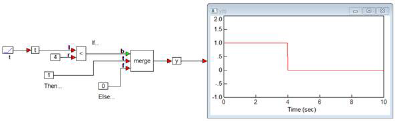

The previous example can also be realized as:

The key difference in implementation is the use of a merge block rather than a * block. The merge block explicitly depicts the if-then-else structure; the * block is a shortcut and can lead to confusion.
