Color Map

Block Category: Operations

Input Image Format

Input Image Requirements: None

Description: The Color Map block applies the specified colormap to the input image.

Applying colormaps to gray-scale images enhances images in the following ways:

      It is easier to see variations in color rather than in gray-scale intensities

      Color can more meaningfully indicate changes in such things as temperature, height, pressure, and density

The Color Map block provides 13 predefined colormaps.

Color Map: Represents the color map applied to the given input. Your selection is displayed in the dialog.

Example

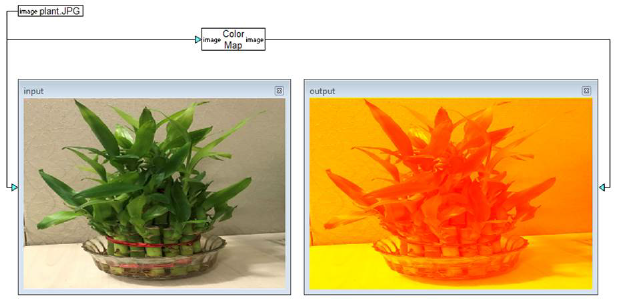

The Autumn color map is applied to the input image.
