CAN PEAK Config command

Block Category: Real Time

Description: CAN Peak Config sets the baud rate and message type.

Additional Information: To determine the correct settings for these parameters, refer to the device vendor documentation.

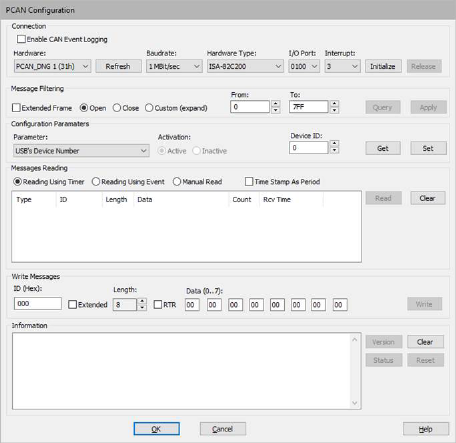

Configuration Parameters: Lets you select and set USB configuration parameters.


Enable CAN Event Logging: Enable CAN events, like bus error light and bus error heavy

Hardware: Once your CAN driver is successfully installed and the device is plugged in, select PCAN_USB.

Baud Rate: Specifies the baud rate.

Hardware Type, I/O Port, Interrupt: Not applicable.

Message Filtering: Specifies filter configuration for standard or extended frames.

Message Reading: Controls how messages are received.

Message Writing: Controls how messages are sent.
