Faces

Select Menu


FEM Face	CAD Face

Faces in CAD

This option works for the selected FEM faces. It is used to display the corresponding CAD faces with its adjacent layers.

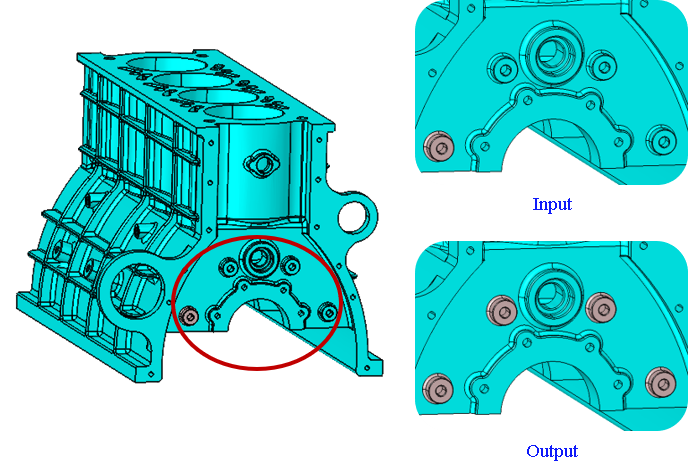

Identical Faces

This option works for the CAD and FEM faces. This tool will identify the faces that have similar topology and area as that of the input faces.

Edges

This option works for FEM and CAD faces. It displays and creates a group with the topological edges of selected faces/face groups.

Internal Nodes

This option displays the nodes (Corner nodes and Mid nodes) in the selected faces. By default, it will not display the nodes in its topological edges.

If you do not want to ignore the nodes of all the topological edges, then by checking the "Skip nodes from edge" option and selecting the topological edges will ignore only the nodes of the selected edges. So that the nodes in the remaining topological edges will be displayed.
