Results on Sets
Introduction
This tool is used to display results for particular sets alone. This tool is supported only for abaqus results. When importing abaqus results model, SimLab will create sets automatically if present in results file and will be listed under SETS in LBC tree.
The element sets present in results model will be displayed under Element Sets in this tool. Select the required sets and click on Display.

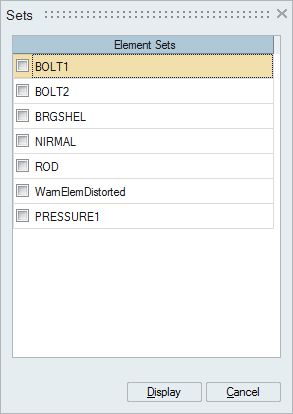

Sample Input

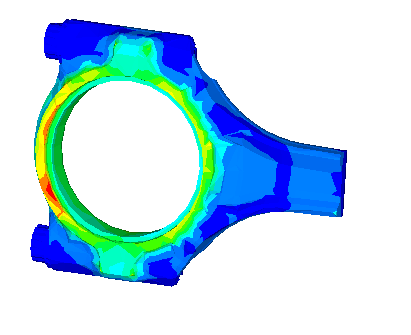

Sample Output

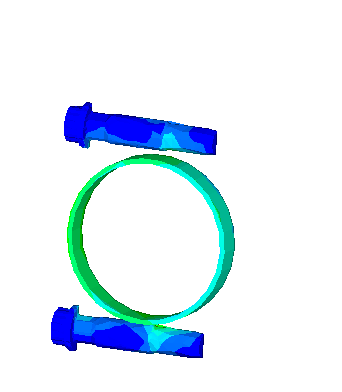

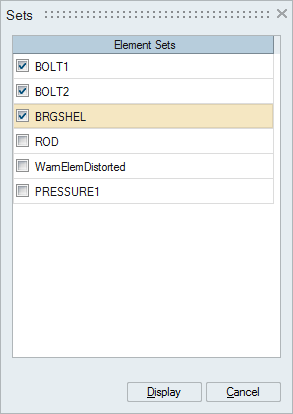

Selected Element Sets display
