CFD Mode

UI Right Click > Enable BC Display | Disable BC Display

Introduction

The CFD mode displays the entities assigned with boundary conditions in colors instead of showing markers. The UI is switched to this mode automatically when the boundary conditions of Acusolve, Molding and Eflo solutions are assigned or modified. The following options are listed in the UI | Right-click for the CFD display mode.

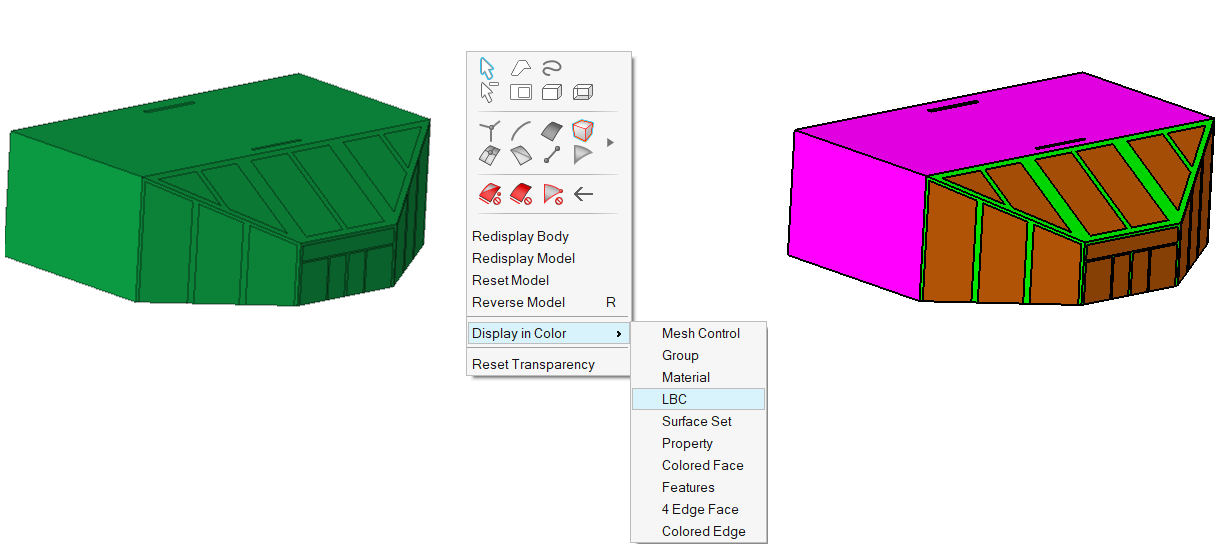

Enable BC Display

This option is used to enable the CFD color mode.

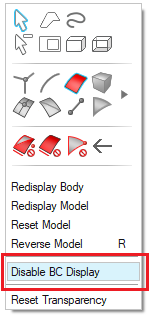

Disable BC Display

This option is used to disable the CFD color mode.
