Custom Default Mesh Templates

The user could load mesh control templates and quality specification templates automatically whenever a database (new or existing one) is opened.

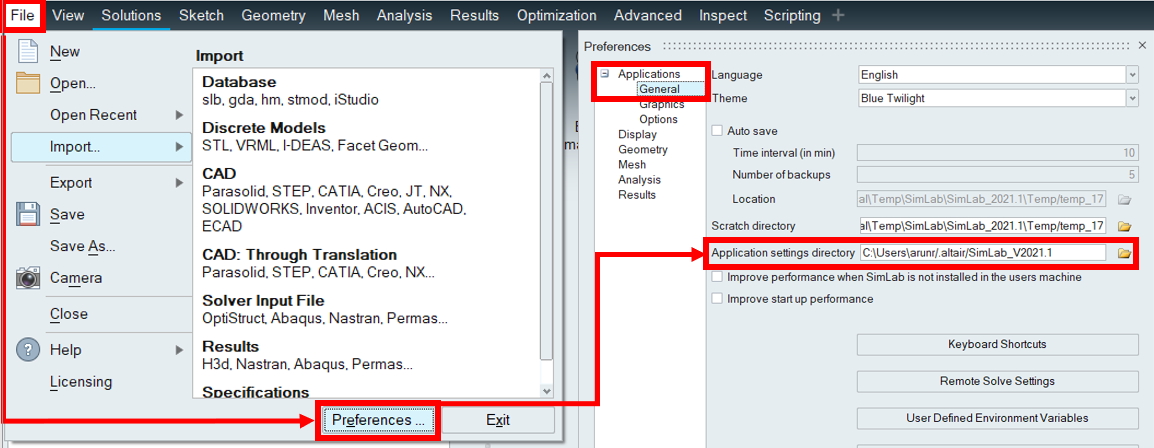

This is done by specifying the required mesh control and quality specification templates in SimLabDefaultMeshTemplates.xml which is available in Application settings directory\simlab (File > Preference > Application > General)

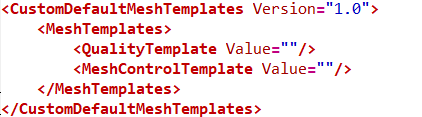

The SimLabDefaultMeshTemplates.xml contains the DOM with empty values as shown

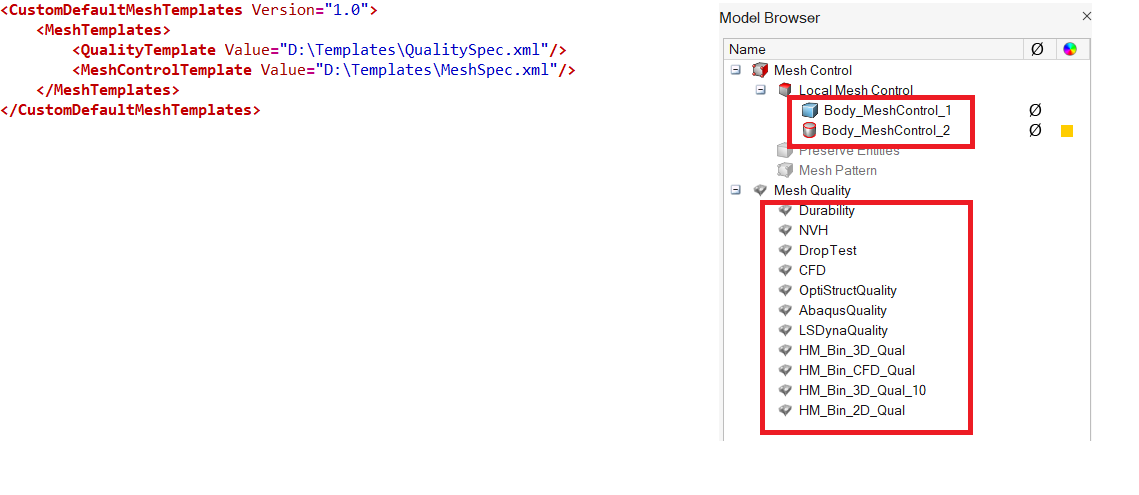

Example: Quality and Mesh Control templates are customised by specifying corresponding xml files in the values attribute.
