By Color

Select Associated By Color

This menu has list of selection tools based on the selected input entity.

Faces

By Color

This option works for the selected faces or bodies (for both FEM and CAD).

To set the color for the faces, select the faces and right click on the client area. This will popup a menu. There is an option named "Color". This will help to set the color for the selected faces.

Also color of faces which are assigned in Catia part can be imported into SimLab by checking the option "Color".

To view the color of the faces, enable "Render Mode > Face Color" option.

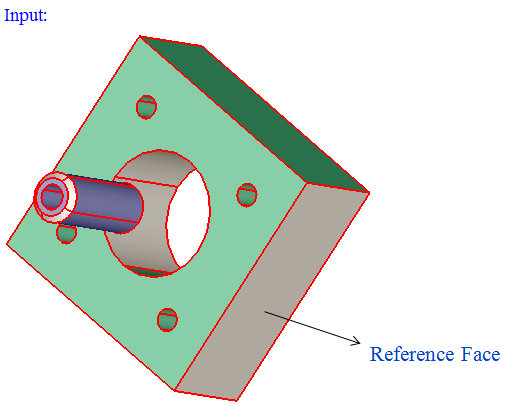

Set the focus on the "Reference faces" option and select the faces.

Set the focus on the "Input faces/bodies" option and select either faces or bodies.

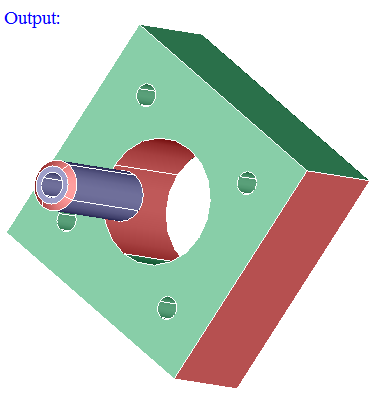

From the input bodies or faces, those faces having the color same as the color of the "Reference faces" will be displayed.

Edges

By Color

To view the color of the edges, enable "Render Mode -> Edge Color" option.

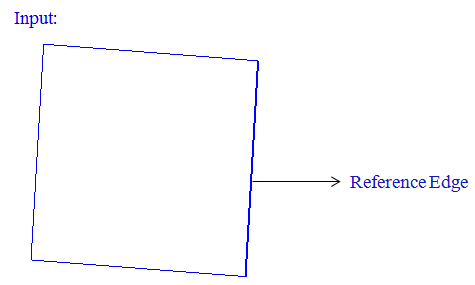

Set the focus on the "Reference edges" option and select the edges.

Set the focus on the "Input edges/bodies" option and select either edges or bodies.

From the input bodies or edges, those edges having the color same as the color of the "Reference edges" will be displayed.
