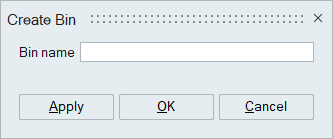

Create Bin
Introduction

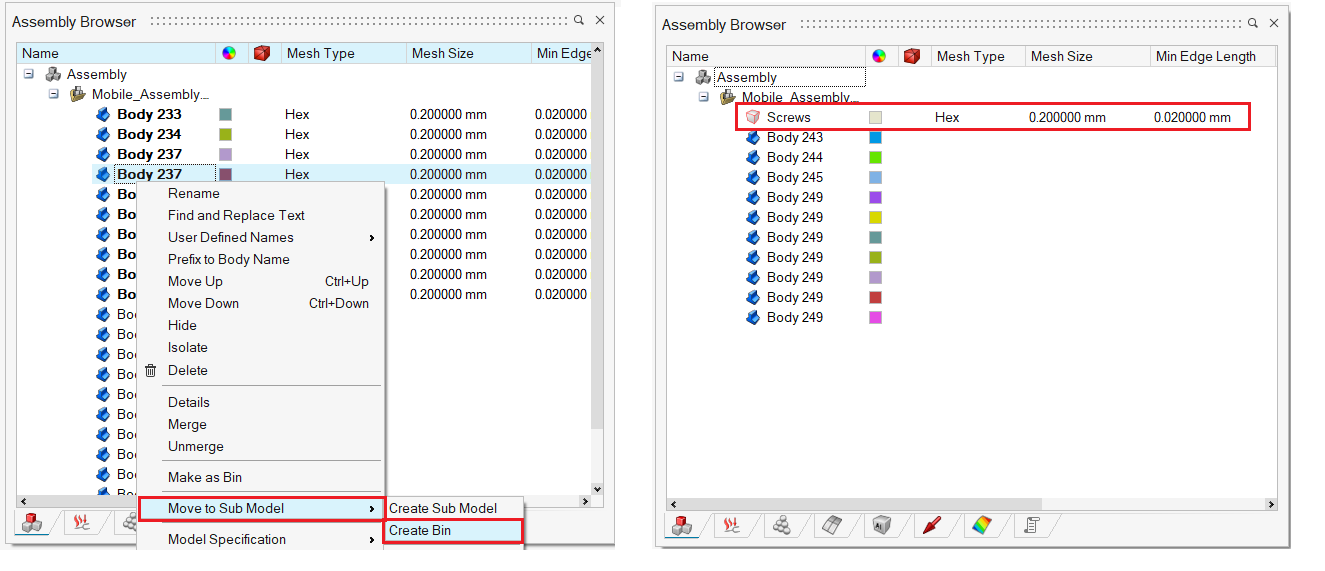

Bin is a container that holds the CAD bodies. Assembly browser represents bin as a single component. In the case of large assemblies, users can group the CAD bodies using this so that the browser contains a smaller number of objects.
In the case of body input, similar Drop Test Parameters between selected bodies get transferred to the bin.
When the bin body gets meshed, we get a single mesh body for the bin. The bin can be converted to a sub model using Make as Bin / Make as Sub Model.
Note: Model and Sub model right-click > Create Bin will create
an empty bin.
