Make as Bin / Make as Sub Model
Introduction
The option Make as Bin combines all the CAD bodies under a sub-model and displays them as a single component in the Assembly browser. It will be useful while handling large models. All the operations that can be done with the Submodel apply to the bin object as well. In the case of a body, Make as Bin makes the body as a bin object. The Drop Test Parameters support assignment of values to the bin. When the bin body gets meshed, we get a single mesh body for the bin.
The bin can get its original structure by using the option Make as Sub Model.

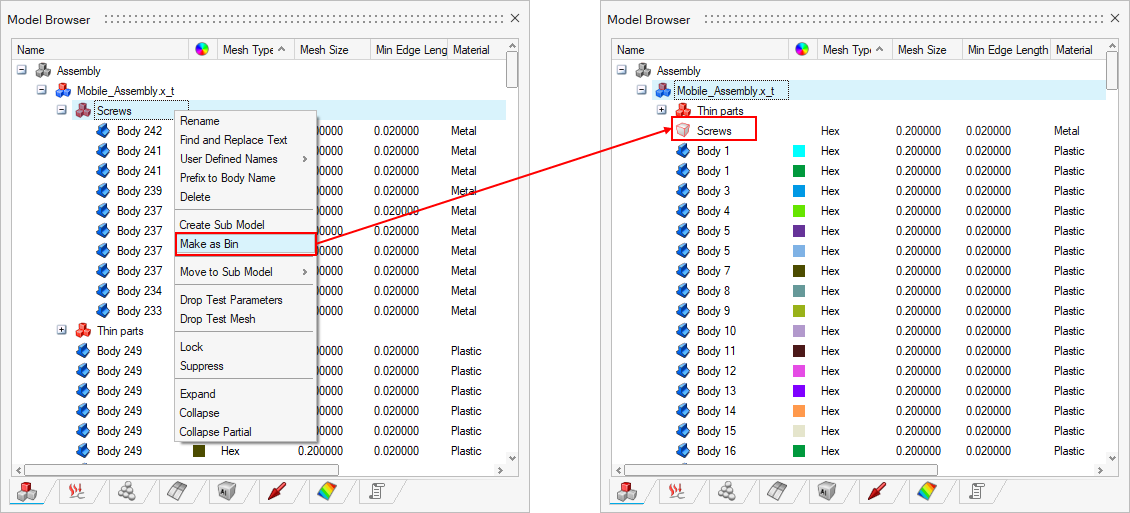

Sub Model converted to a Bin

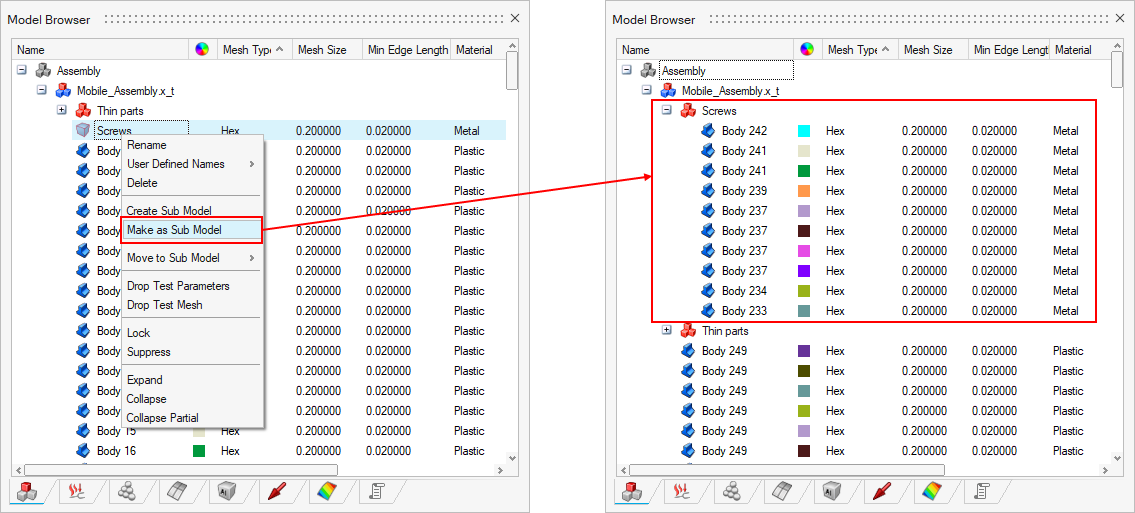

Bin converted to a Sub Model
