Results

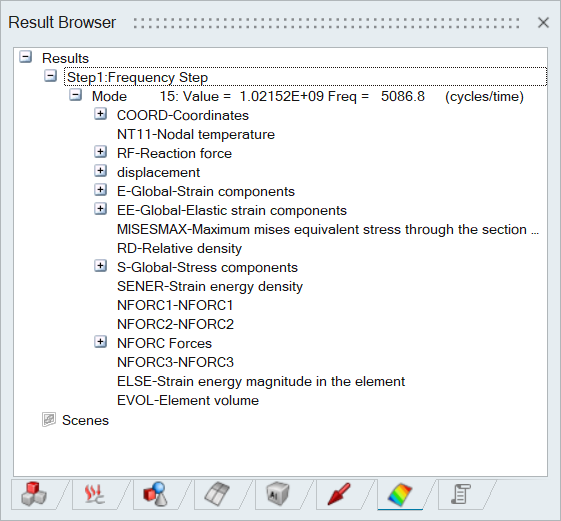

It displays available results in an analysis results file. Double click or click on results objects will load that corresponding results type in Graphics Window.

Right click options:
  • LCS Coordinate Transformation, Calculate Principal, Upper Layer, Lower Layer, Both Upper- and Lower-Layer Options for shell results models.
  • Delete Results, delete the entire results.
  • Contour is supported for all results components. Vector display is supported only for Displacement components.

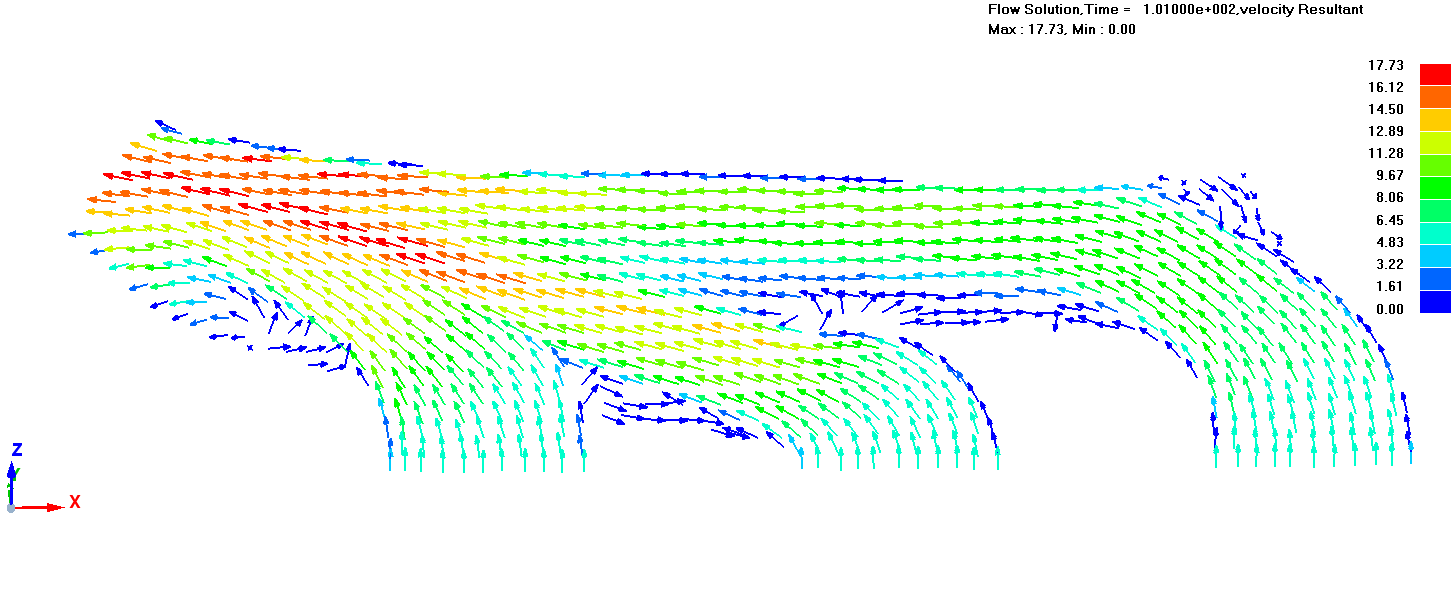

  • Vector plotting is also supported on cutting plane cut layer region. When we zoom in and out the views, it automatically increases /decreases the number of vector drawing for better visualization.

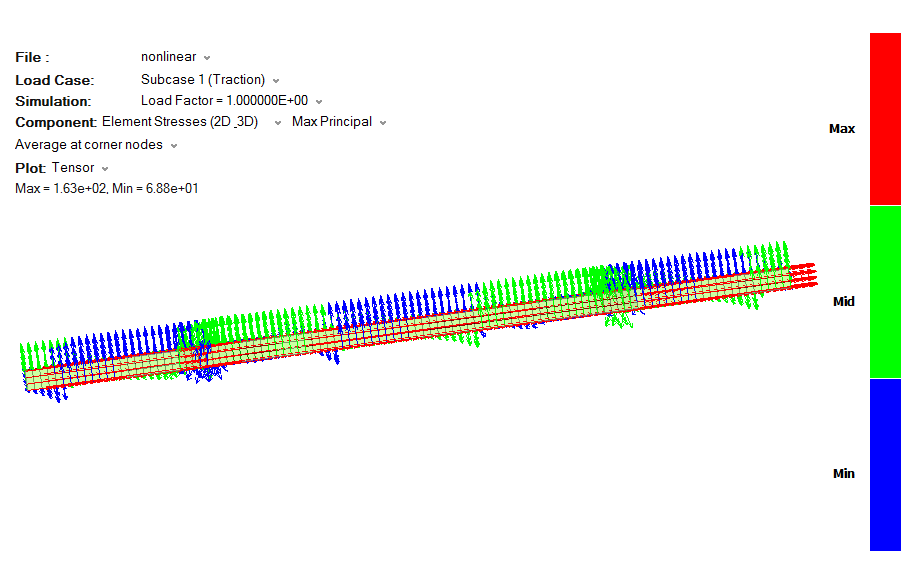

  • Tensor plot is supported for principal components.

  • Contact Pairs Force Normal

    It displays the X, Y, Z and Resultant Force Normal values in a tabular form for each contact pairs.

  • Create Response options for Results component.
  • Average Method options for Elemental results.

Scenes

This option is shown only for the H3d results file or results file imported through new result reader.
