Selection List

View > Selection List

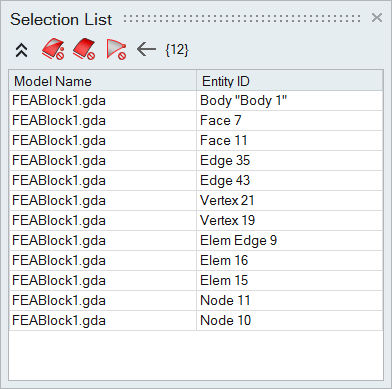

All the selected (picked) entities will be displayed in this window. This will help the users to identify the selected entities and correct them before giving as input to any dialog box or operation.

There are two types of selected entities. Geometry (Body, face, edge and vertex) and FEM entities (Elements, nodes, element edges).

Expand/Collapse

: It show/hide the selected list content.

Deselect All

: It clears all the entities in the selection list.

Deselect Geometry

: It clears only the geometric entities.

Deselect FEM

: It clears only the FEM entities.

Previous Selection

: It restores the last picked entities.

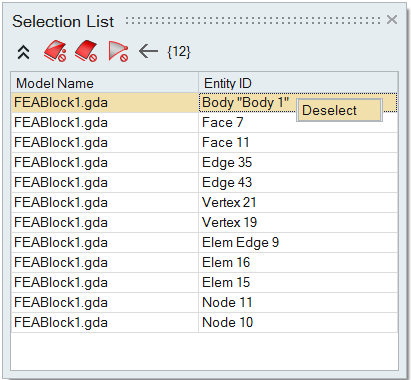

DeSelect

Individual entities can be selected and removed from the selection list using Deselect or Delete key.
