Setting the Model Units

Change the model units to meters, kilograms, and seconds.

Tip: Watch the following video: Working with Unit Systems.

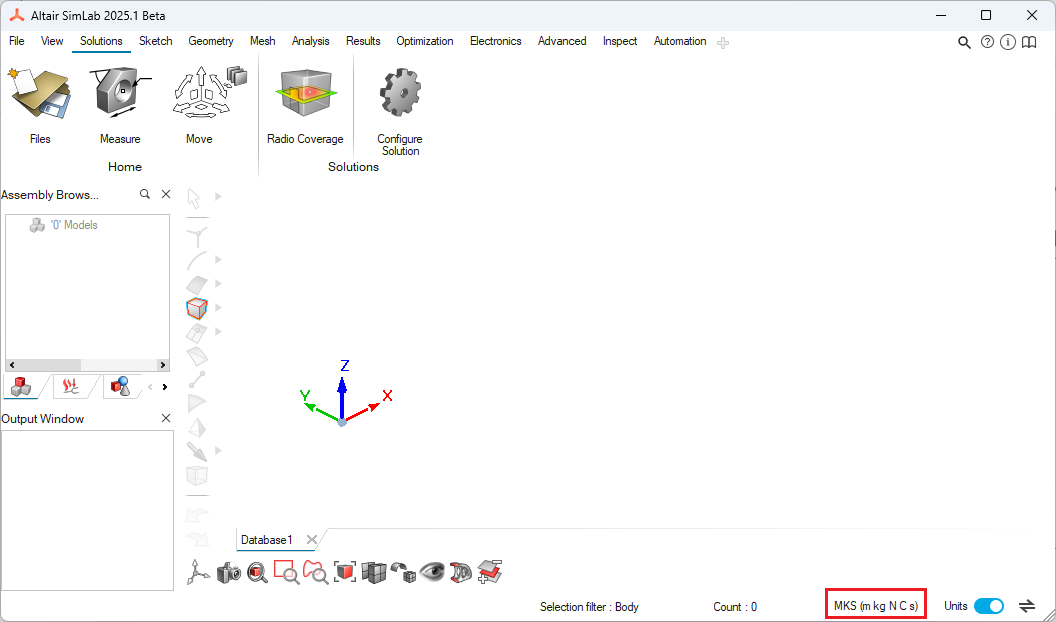

At the bottom right corner of the screen, click the model unit drop-down list.
Change the units to MKS (m kg N s).
Tip: The default units for new databases can be specified on the File > Preferences dialog.
