Example Overview

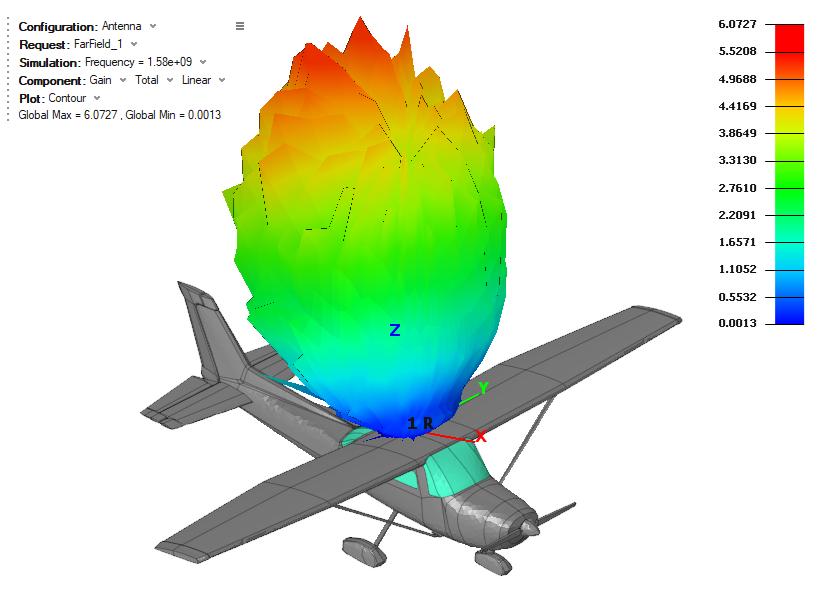

This example shows how to define and set up an antenna placement solution in Altair SimLab using a Cessna-172 aircraft. A GPS antenna is placed on the aircraft using an equivalent source defined from a .ffe file. The model is solved using the Ray Launching Geometrical Optics (RL-GO), and the results are displayed.

The Cessna-172 has the following dimensions:

Width: 11.023 m
Length: 8.26 m
Height: 2.40 m

Note: Follow the example steps in the order presented, as each step uses its predecessor as a starting point.

Example access

The model files can be found at the following link: Antenna_Placement.zip.
