Logo and Details Mesh control

Introduction

Logo and Details mesh control is used to defeature the logos/unwanted details from the geometry. The faces that needs to be defeatured should be given as input. It works for both CAD bodies and FE bodies.

Example

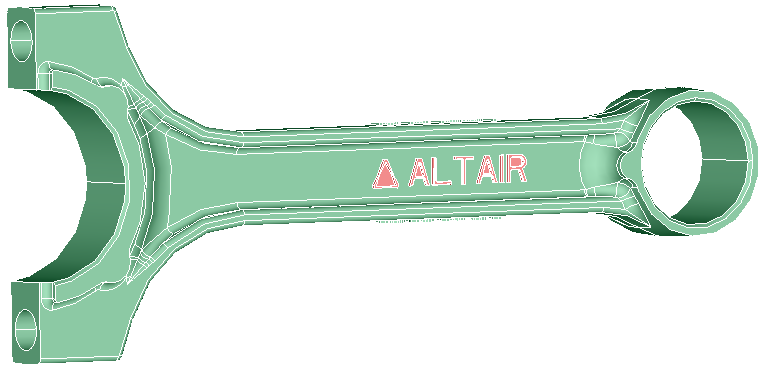

Remove logo mesh control is applied to the highlighted faces.

Output
