Imprint Circle Mesh Control

Introduction

Imprint Circle Mesh Control is used to create a circular edge on a face with specified radius and seeds.

This mesh control is applicable only for cad models.

• Circle Centre

  Centre defines the centre of the circular edge.

• Circular radius

  It is calculated using Radius and scale values.

• Circular divisions

  The Number of seeds along the circle is specified.

Example 1

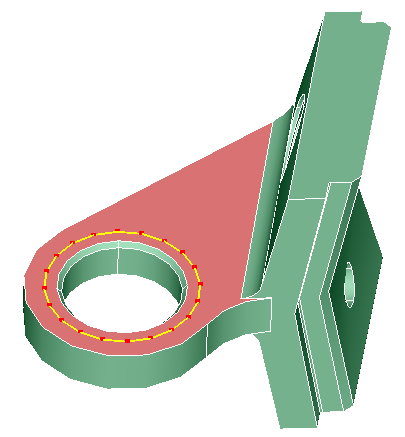

Imprint Circle mesh control is applied to the face on which the circular edge is to be created. The centre and radius can be specified manually or by selecting an arc edge.

Circular edge is created on the face for the specified radius and seeds.
