Holes Mesh control

Introduction

Holes mesh control is used to remove the holes. User can either select bodies or faces to remove the holes. It works for both CAD bodies and FE bodies.

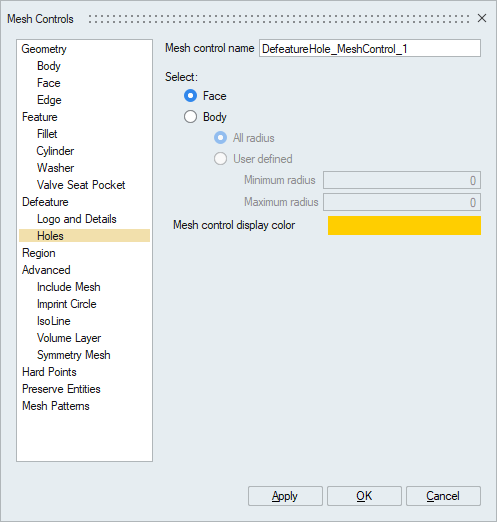

Select
  • Face:
    • In the case of hole removal, user can give all the faces of the hole or a face in the hole. If only a face per hole is selected, the connected faces of the hole along the axis will get identified and removed.
    • In the case of slot removal, user has to input all the faces of the slot.
  • Body:

    User can select a body to remove the holes in it.

    • All radius: All the holes will be removed.
    • User defined: Holes specified in the given radius range will be removed

Example 1: Face Input

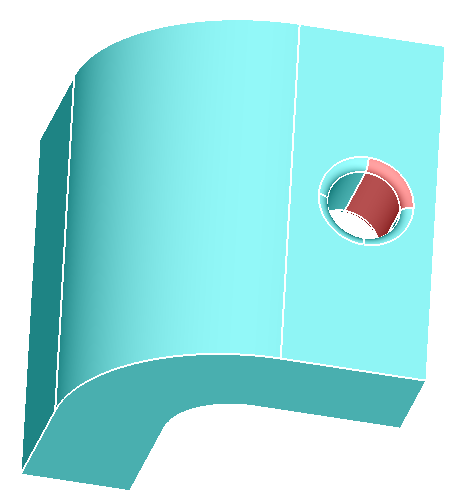

Input

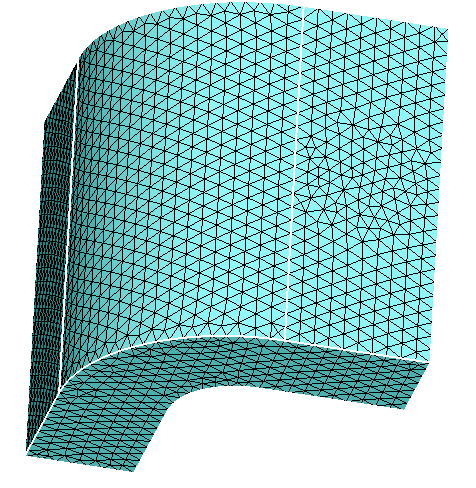

Output

Example 2: Face Input

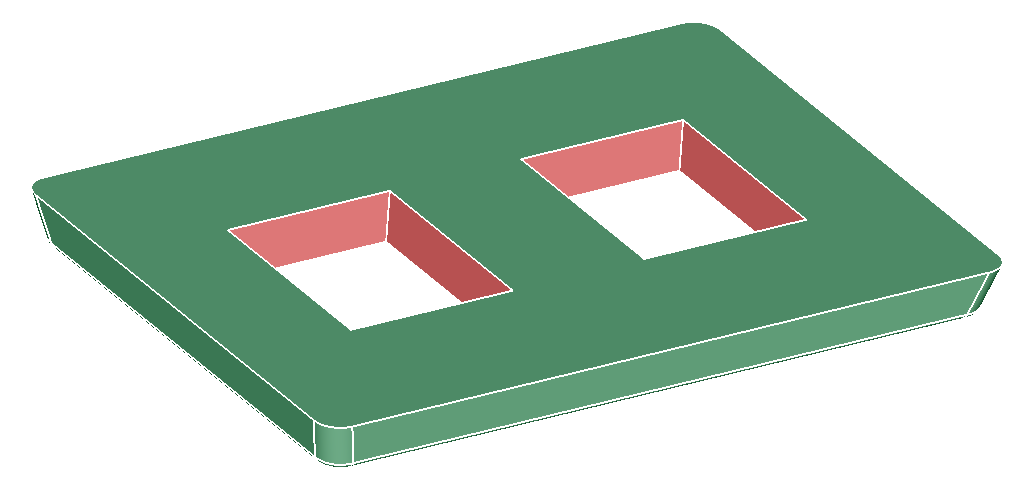

Input

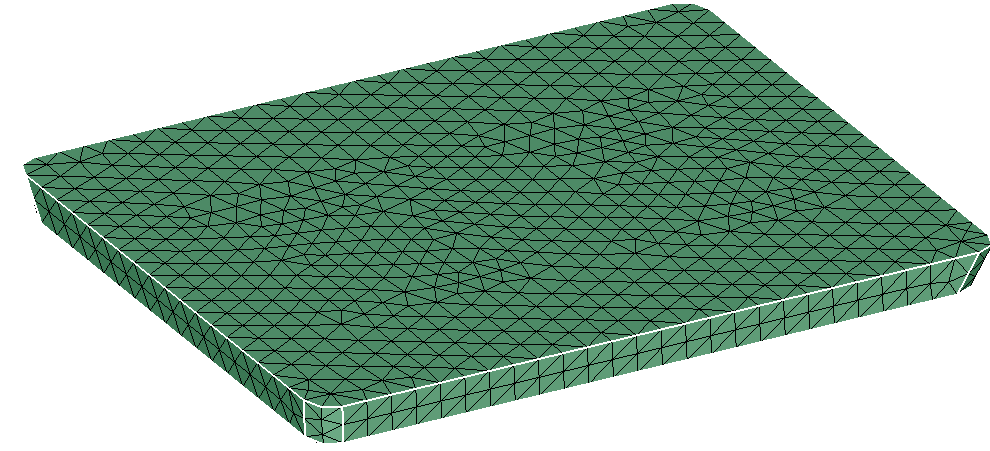

Output

Example 3: Body Input with all radius option ON

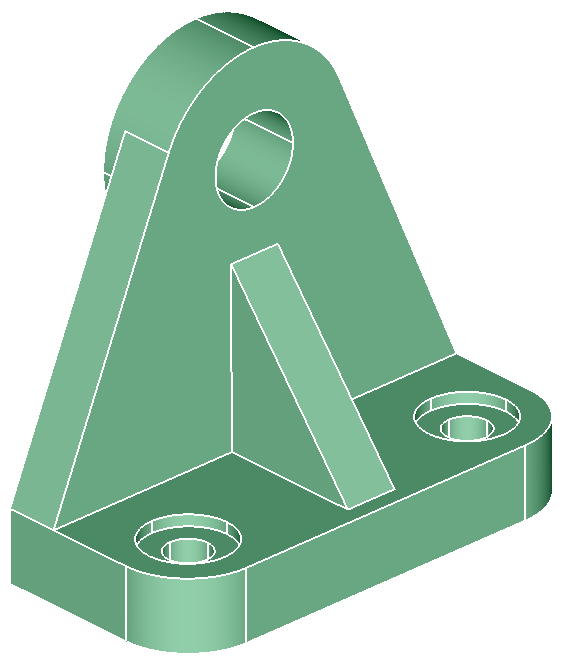

Input

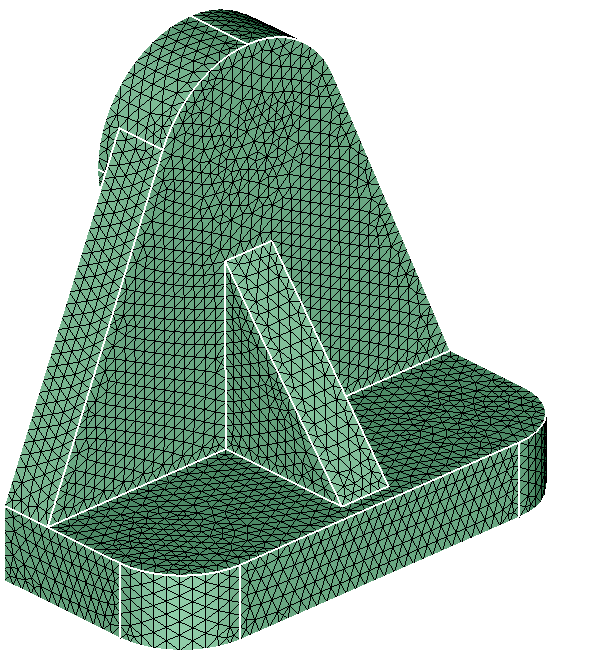

Output
