Transfer

Mesh Control > Transfer

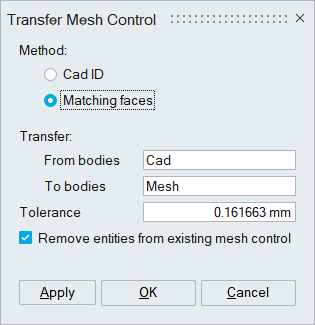

Dialog Box

Mesh controls can be transferred between selected bodies in “From bodies” to “To bodies”. It is used to transfer mesh control from CAD bodies to CAD/FEM bodies.

Mesh controls will be transferred using Cad ID. It supports only Cad-Fem transfer.

Mesh controls will be transferred based on matching/identical entities. It supports both Cad-Fem and Cad-Cad transfer.

Tolerance

The identical entities are identified using the specified tolerance value and it is used only for the “Matching faces” method. The average element size of the selected bodies in the “To bodies” will be automatically calculated, and it is exposed as tolerance value. The user can modify it further.

If the toggle is ON, it will remove entities from existing(old) mesh control.

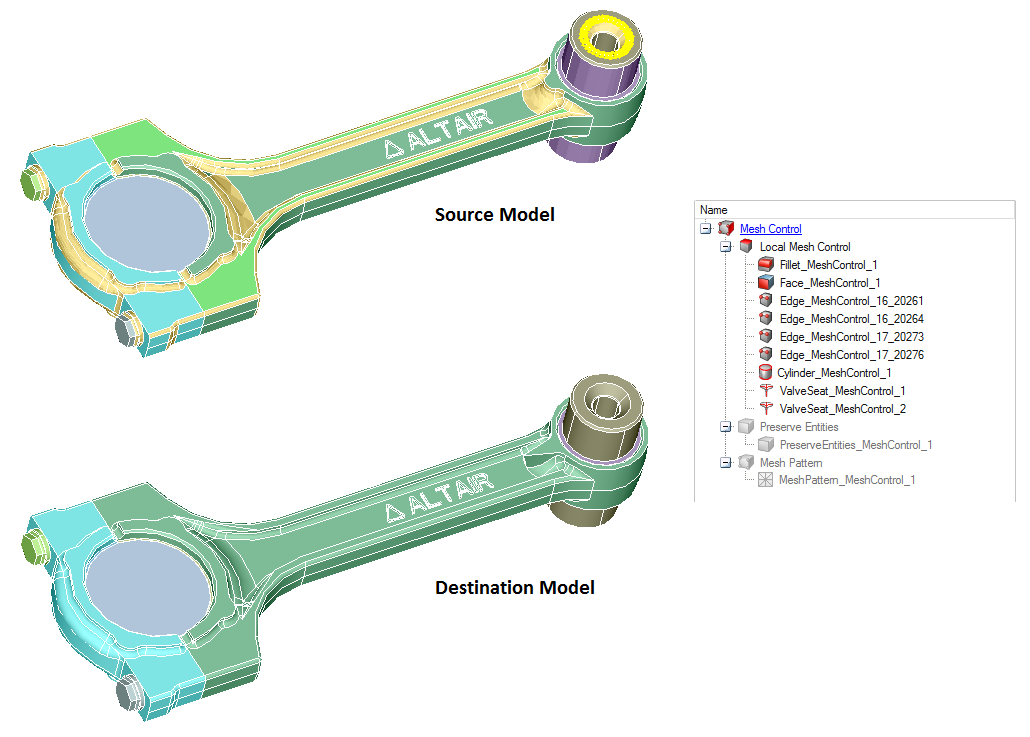

Example(for matching faces)
