Mesh Patterns Mesh Control

Description

The manner in which elements are arranged in a face are known as mesh pattern.

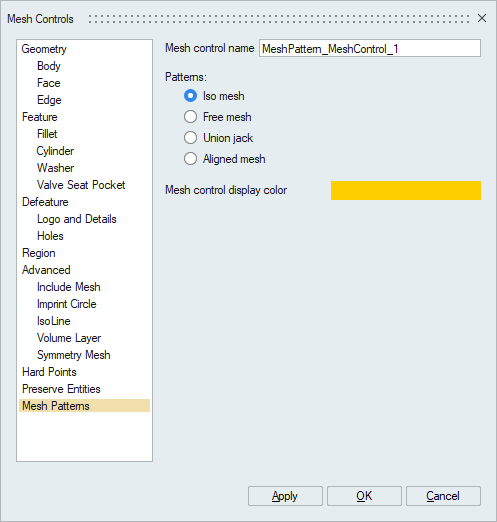

Following are the three types of mesh pattern,

  1. Iso Mesh
  2. Free Mesh
  3. Union Jack
  4. Aligned Mesh

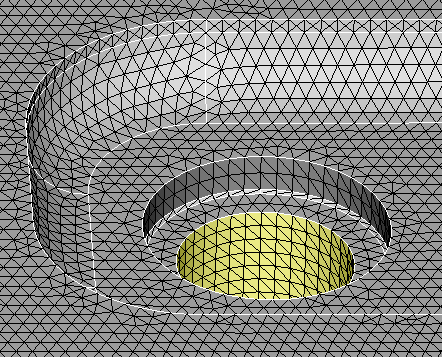

Iso Mesh

This create elements that have 2 edges almost 90 degrees and the diagonals are inclined in the same direction. This isomesh pattern can be created on a four sided surfaces.

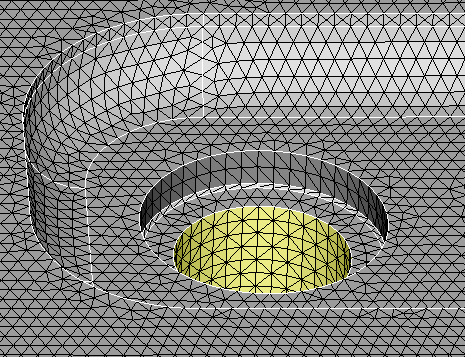

Free Mesh

This create elements that have 2 edges almost 90 degrees and the diagonals are inclined in the same direction. This isomesh pattern can be created on a four sided surfaces.

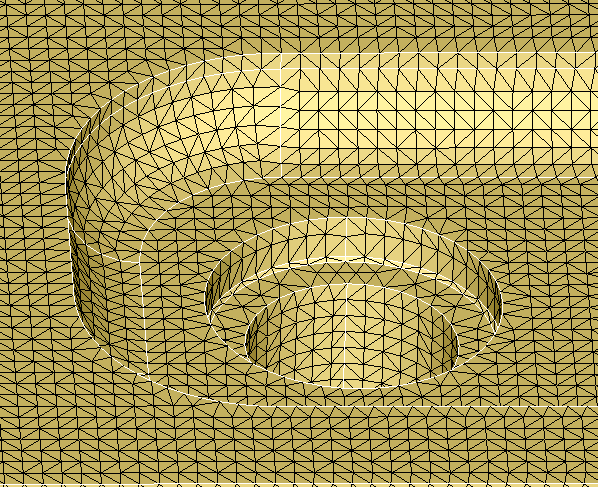

Union Jack

This create elements that have two edges almost 90 degrees and the diagonals are inclined in the opposite direction.

Aligned Mesh

All the elements in the selected faces will get aligned to a certain direction. This can be applied to any face.
