Options

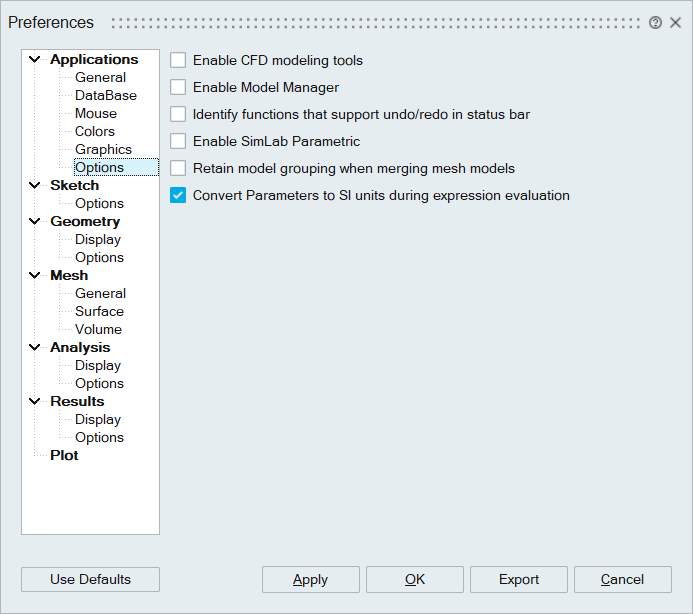

File > Preferences > Applications > Options

Enable CFD modeling tools

Turn on this to enable the following options:
  • Geometry | Body | Create | From Faces - "Duplicate and make shared nodes" and "Shared faces in selected bodies".
  • Mesh | 3D Create | Solid Mesh | Advanced Options - "Retain 2D surface bodies" and "Preserve surface skew".
  • Mesh | Verify | Quality | Options - "Preserve surface skew".

Identify functions that support undo/redo in status bar

This option is used to identify the functions that support undo/redo in status bar when the dialog is opened.

Enable SimLab Parametric

Turn this toggle ON to capture all the steps involved in the modeling process under Parameter Browser > Process > Operations.

Retain model grouping when merging mesh models

Turn this toggle ON to retain each model grouping as a sub-model in the merged model. Refer Merge Models.

Convert Parameters to SI units during expression evaluation

This option controls how calculations are performed during expression evaluation.

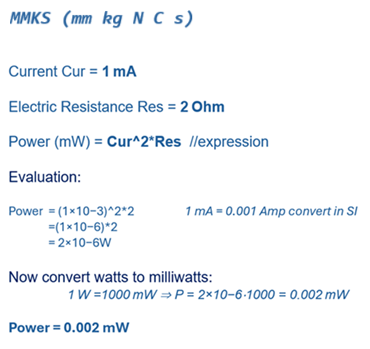

ON

If this toggle is ON, the expression parser converts all parameter values to SI units before evaluation.

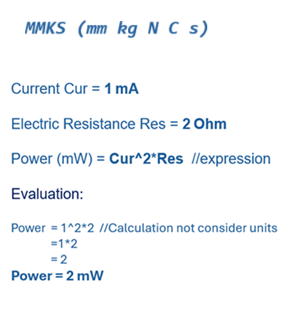

OFF

If this toggle is OFF, the parameter units are ignored while evaluation.

Note: Avoid using expressions in Line Edit or Script DOM nodes. Assign them to a parameter and use the parameter instead.
