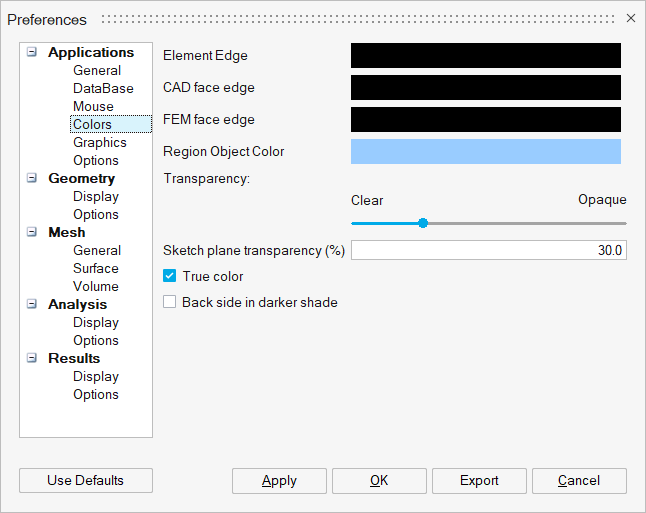

Colors
Element Edge
This option allows the user to change the color of the element edges for better view. Select the desired color from the Element edge Color palette and click Apply. The color of the element edge is black by default.
CAD face edge
This option allows the user to change the color of the CAD topological edges. Default color of the CAD geometry edge is white. To change the CAD face edge color choose the color from CAD face edge color palette and click Apply.
FEM face edge
This option allows the user to change the color of the FEM topological edges. Default color of the FEM geometry edge is white. To change the FEM face edge color choose the color from FEM face edge color palette and click Apply.
Region Object Color
This option is used to change the color of primitive objects like Planes, Cylinders, Cuboids, Spheres, Cones used in Define Plane, Define Cylinder, Define Cuboid dialogs etc.
Transparency
This slider is used to adjust the opacity of region object color.
True color
By default, the body displays in the original color with ambient and diffuse effect. Turn OFF this toggle to reflect body color based on the ambient effect.
Back side in darker shade
This option is turned off by default, the front and back side of the faces are of the same shade. If this option is turned off, the back side is in a darker shade. This is useful when displaying shell bodies.
