Resistor, Inductor and Capacitor (RLC) components
The following are the circuit components supported as of SimLab:
| Component | Icon | Description |
|---|---|---|
| Resistor, Inductor and Capacitor |
 |
RLC components. Orientation does not affect the computation. |

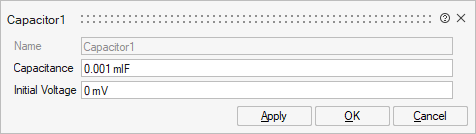

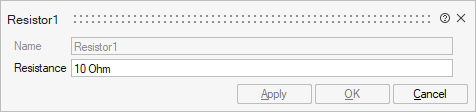

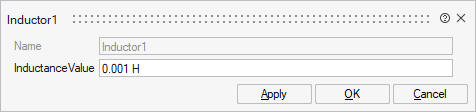

Dialog box
Resistor, inductor, and capacitor components are used to define the RLC components of the circuit. The inputs are the resistance, inductance and capacitance along with the initial voltage values.

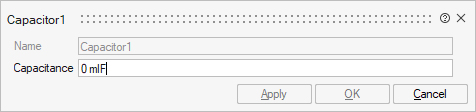

Note: For Magnetic AC 3D and
Supplied Conductors AC solutions the Capacitor component
needn't Initial Voltage, but only Capacitance value:
Current-Voltage characteristics
The Current Voltage characteristics for each of these different components is mentioned in the table below
| Component | Current-voltage characteristic | Characteristic quantity | Initial value |
|---|---|---|---|
| Resistor |  |
R is the value of the resistance (in Ω) | |
| Coil |  |
L is the value of the coil inductance (in H) | Initial current I(t=0) |
| Capacitor |  |
C is the value of the capacitance (in F) | Initial voltage U(t=0) |
where:
- U(t) is the voltage at the terminals of the component (in V)
- I(t) is the current flowing through the component (in A)
Tips and Tricks
- To modelize an "Open Circuit", a resistance with a big value (like 100 000 Ohm) can be connected.
