Beam (Contact)

This realization creates beam elements between the shells and/or solid elements, connecting them using a contact definition.

Figure 1. Beam (Contact) Realization Example

Contact

Creation: Specifies how many contacts will be created depending on the number of links.; One contact per connector (single contact), one contact per link pair and one contact per link are the available options.
Single Contact: Specifies if the property created will be automatic or the sets will be user specified.; If one contact per connector (single contact) is chosen, then the user can optionally enter the contact sets manually.
Local: The contact will be created in a localized area around the connector rather than the entire link.

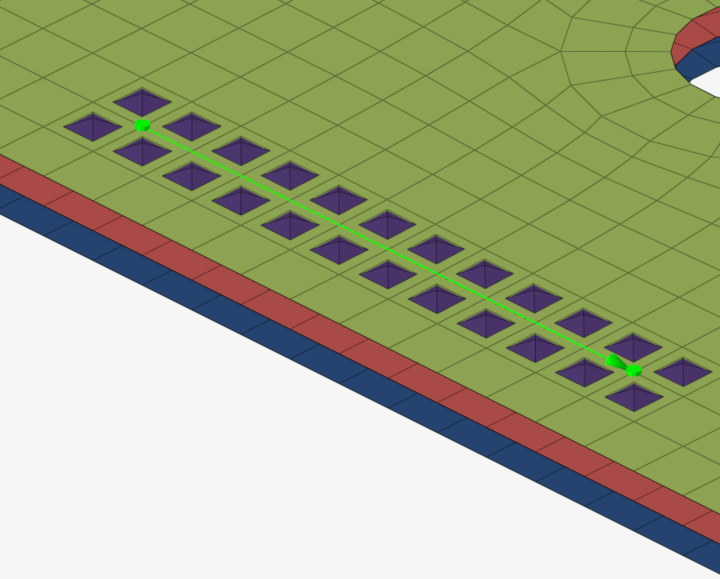

Figure 2. Local contact creation
Create HAZ: Creates a Heat Affect Zone around the connector. This option is enabled only when the Local option is ON. The same elements that are used to create the localized contact are used for HAZ creation. Properties and materials for the zone are defined from the connector control.
Card Image: Specifies the card image to be used in the contact definition(s).; The card image can be either ContactSpotweld or NodeToSurface.

Property and Material

Material Card Image: Defines the card image of the material(s) created.; Can be either MATL100 or MATL196.

Legacy Realizations

The following realizations are replaced by Beam (Contact):

mat100
mat196
HC beam spotweld
HC glue
HC glue structural adhesives
HC welding line
HC hemming
