Edit Solution
Introduction
After to Edit the solution, all meshed bodies can be assign to the solution.
The bodies to be assigned to the solution:
- should be meshed with surface mesh or volume mesh (limitation to be left)
- should belong to the same .gda model
Note: The 3D Transient Magnetic solution is created before, to
have more details about the creation of the 3D Transient Magnetic solution,
please refer to Transient Magnetic solution.

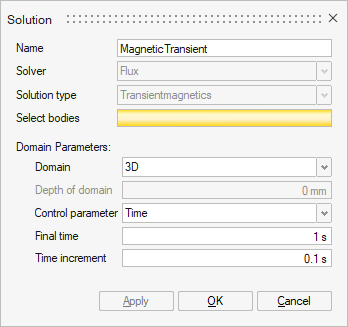

Dialog Box
In the Select bodies field, select all the meshed bodies.
