Review Loads and Connections

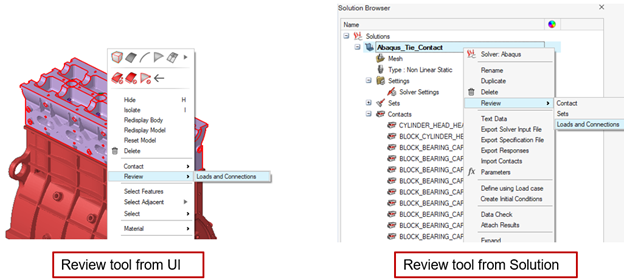

Select bodies > Right click > Review > Loads and Connections

Solution > Right click > Review > Loads and Connections

Introduction

The tool is used to list the following details defined on the bodies.
  • Material and Property
  • Loads
  • Sets
  • Connections
    • Contact
    • Equivalenced nodes
    • Shared surfaces
    • 1D bolts

Description

  1. The tool can be used on selected bodies in the GUI or it can be used to review the details on the solution using Solution Name | right click option | Review | Loads and Constraints.

  2. This tool provides a body-based list of the details defined on the body.

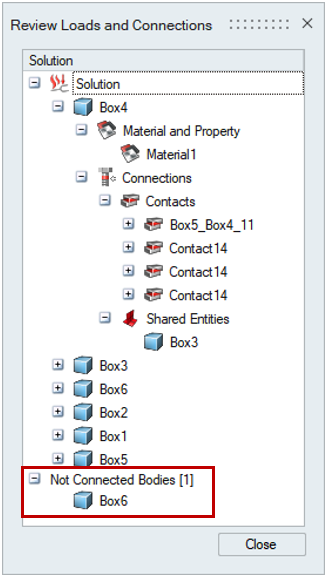

  3. This tool helps to find the unconnected bodies, by listing the unconnected bodies separately.
