Transform: Two Arcs

Home > Transform

This is used to transform a body(movable) by picking two arcs on movable body and two arcs on fixed body such that the arcs on both bodies will match each other. Supports both Mesh and CAD bodies.

Sometimes, while doing transformation, the movable body may get flipped. Users, can use this toggle to flip it back. This toggle will be enabled only after performing the operation.

Select this toggle to take a copy of movable body. A new body will be created.

Select this toggle to copy the LBC of movable body to new bodies.

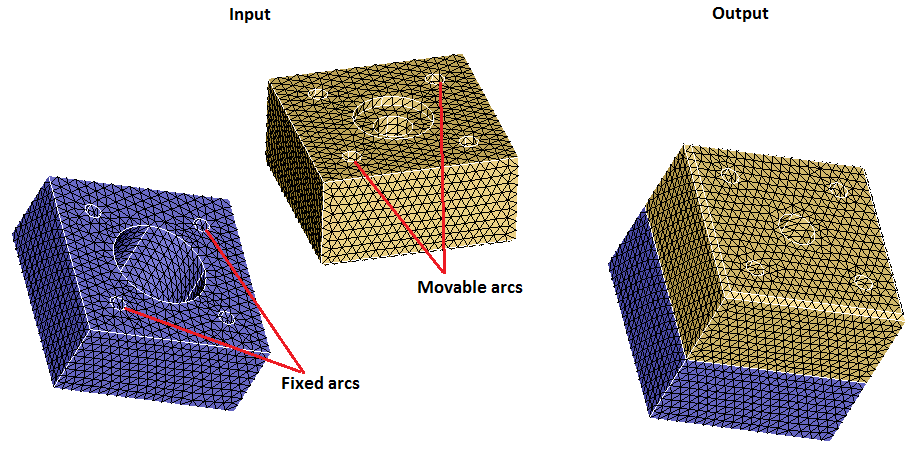

Example - Mesh

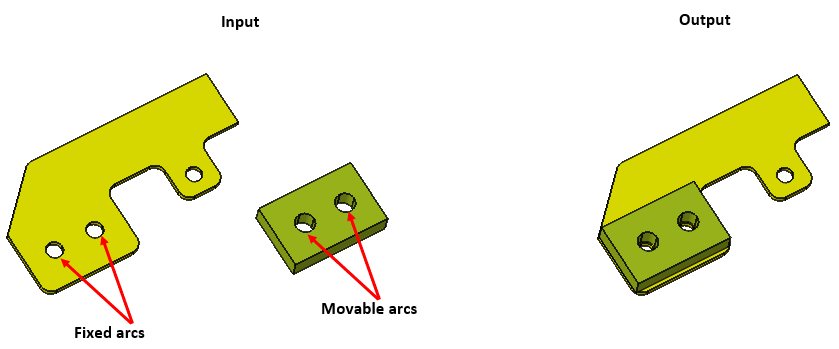

Example - CAD
