Transform: Mirror

Home > Transform

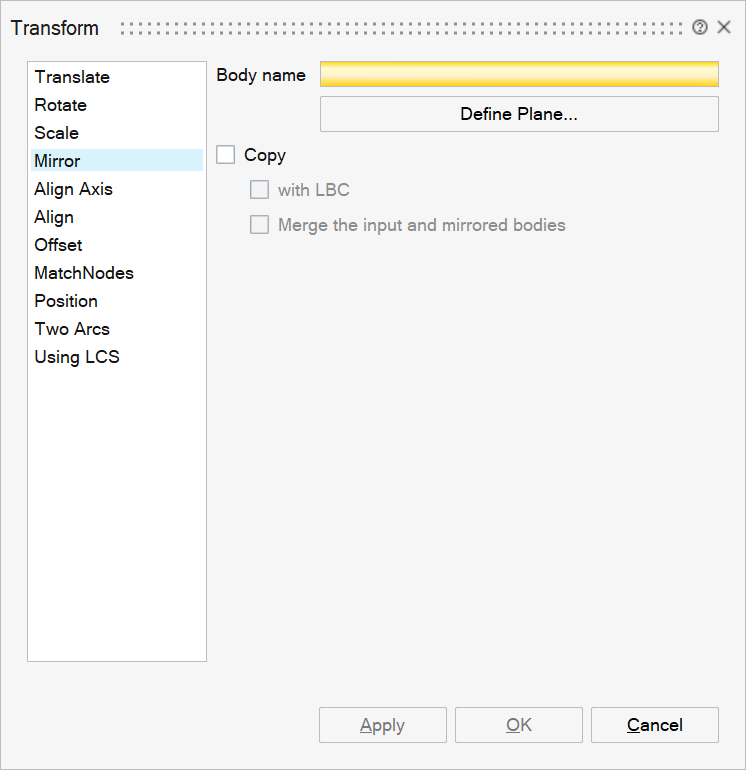

This is used to mirror the body by given plane.

Copy

Select this toggle to take a copy of input body. A new body will be created.

This option is supported only for FE models and Parasolid models imported with "Save geometry in database" option.

  • With LBC

    Select this toggle to copy the LBC of input body to new bodies.

Note: For CAD input, the associated mesh controls also will be transferred.

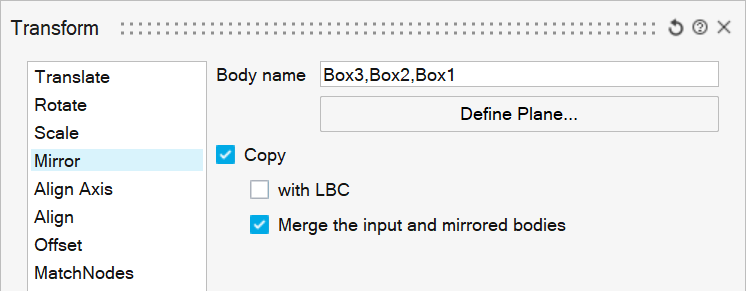

  • Merge the input and mirrored bodies

    After mirroring, the input and the new bodies get joined and merged into a single body. It supports only mesh bodies.

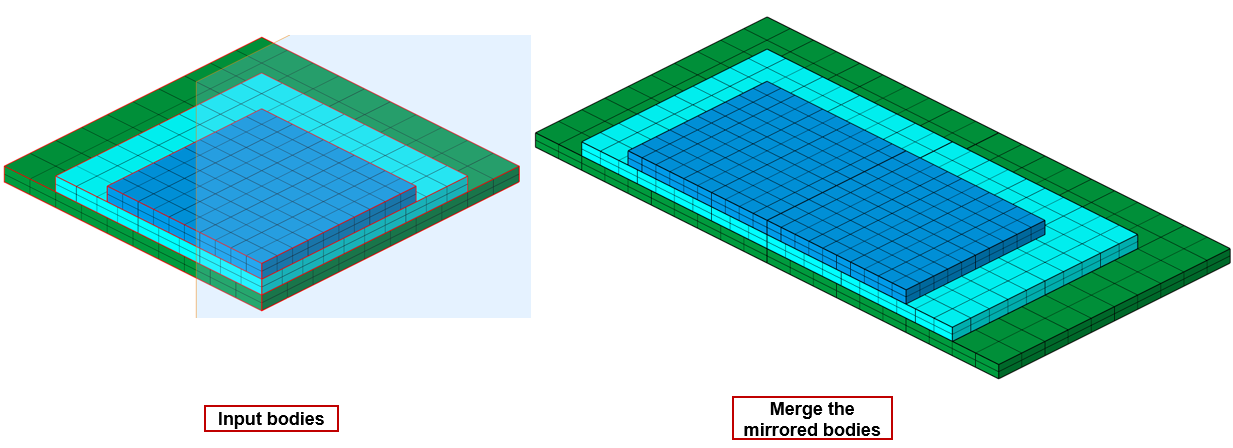

Example
