Transform: Offset

Home > Transform

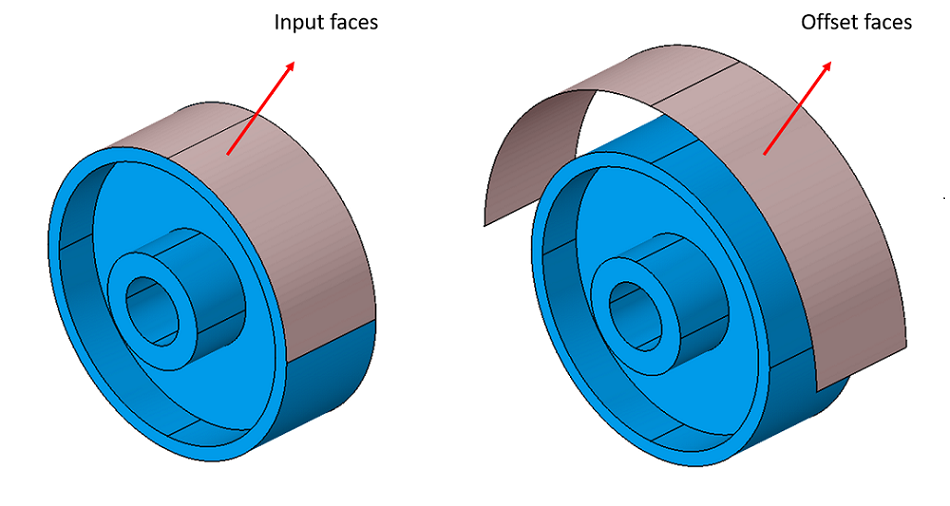

This is used to offset the face in the normal direction by given distance. The offset face will be created as a new body.

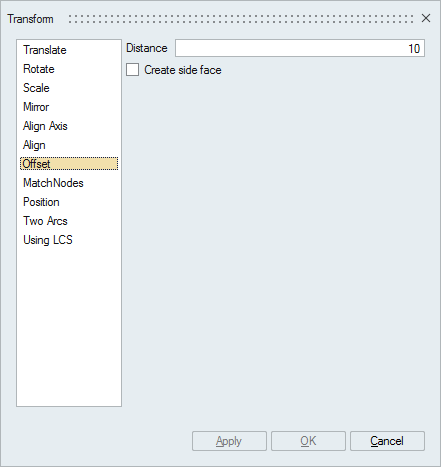

Create side face

Select this toggle to create side face between the input face and its adjacent faces.

Note: Offset CAD face is supported only for Parasolid models imported with "Save geometry in database" option enabled.

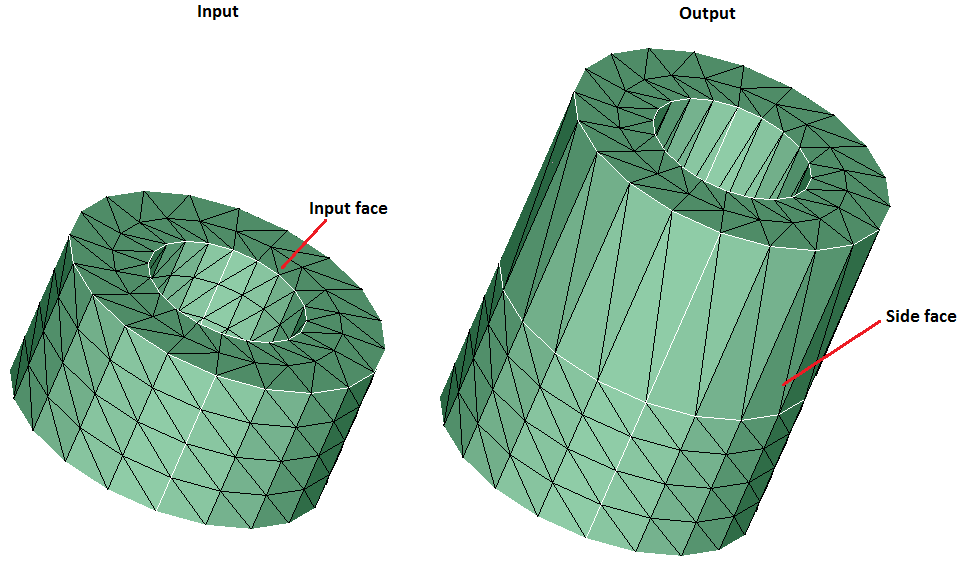

Example(Create side face = OFF)

Example(Create side face = ON)

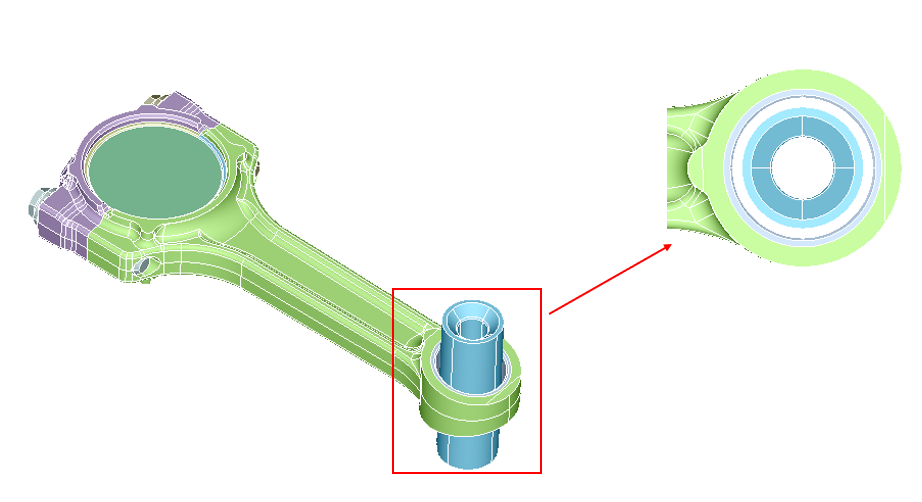

CAD Example(Create side face = OFF)

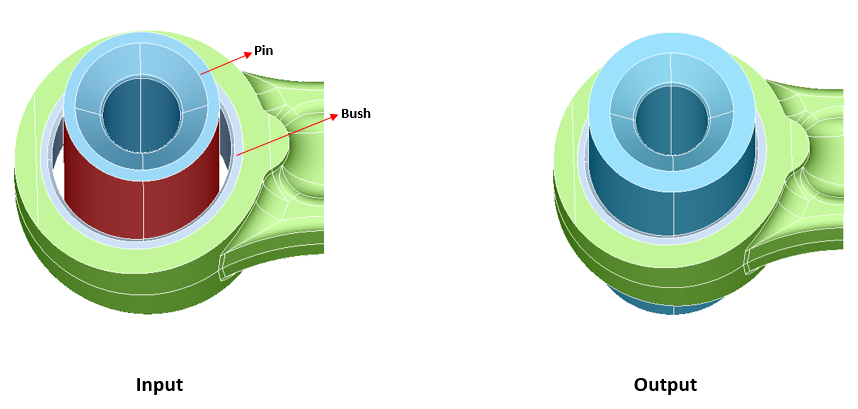

CAD Example(Create side face = ON)
