Transform: Match Nodes

Home > Transform

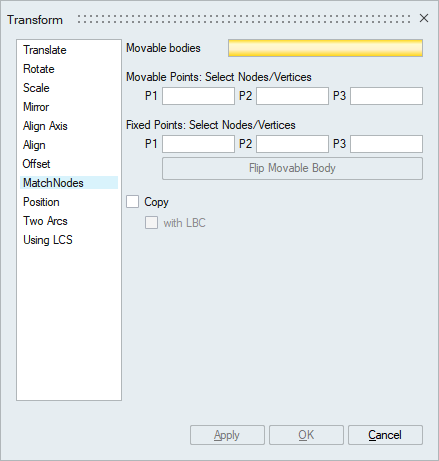

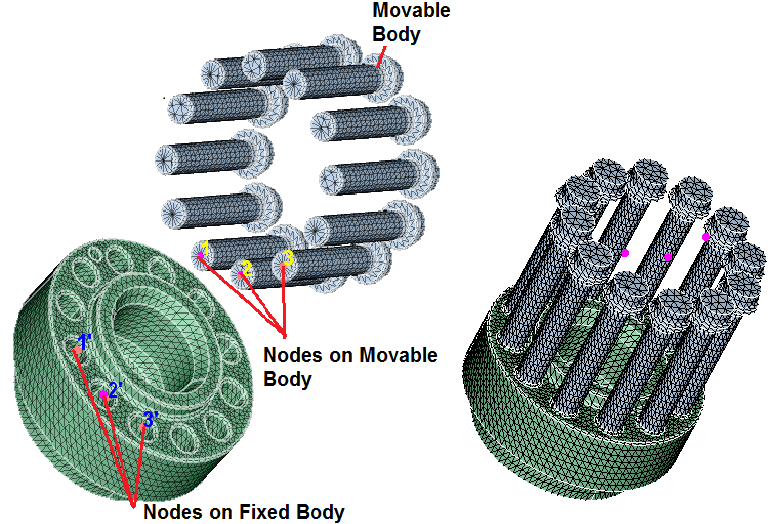

This is used to transform a body(movable) by picking three nodes/vertices on movable body and three nodes/vertices on fixed body such that the nodes/vertices on both bodies will be matching. This is applicable for both FEM and CAD bodies. The fixed and movable points can be defined using either nodes or vertices, but combination of it is not allowed.

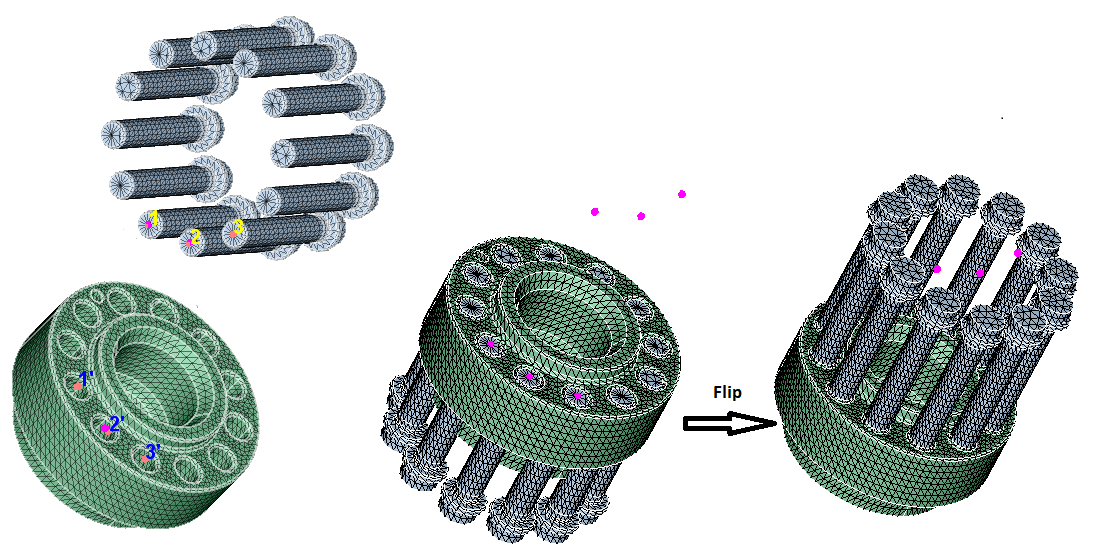

Sometimes while doing transformation, the movable body may get flipped. User can use this toggle to flip it back. This toggle will be enabled only after performing the operation.

Select this toggle to take a copy of movable body. A new body will be created. This is supported only for FEM bodies.

Select this toggle to copy the LBC of movable body to new bodies. This is supported only for FEM bodies.
