Transform: Position

Home > Transform

Arc/Circle

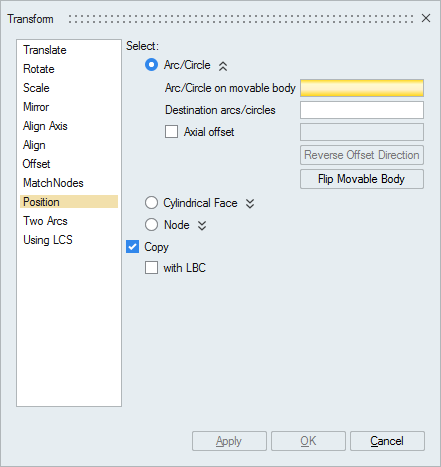

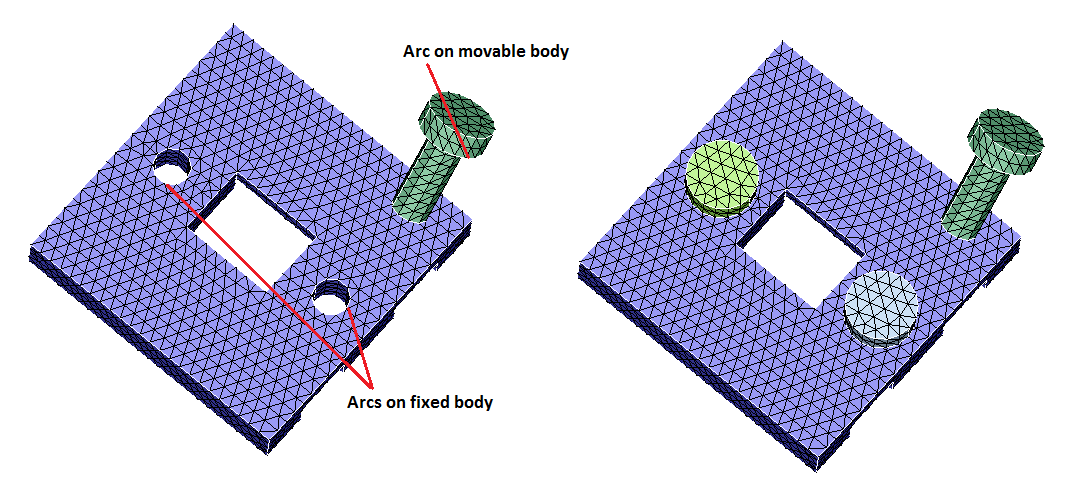

This is used to transform a body(movable) by picking an arc on movable body and an arc on fixed body such that the arcs on both bodies will match each other. Supports both Mesh and CAD bodies.

This option is helpful when the user wants to move the body along the axial direction by certain distance after position is done. Select an arc edge to calculate the distance to move. The distance is basically calculated between the arc center of this edge and that of one being selected on movable body.

This option is used to reverse the axial offset direction.

This option is used to flip the movable body about the plane formed by arc selected on movable body.

Select this toggle to take a copy of movable body. A new body will be created.

Select this toggle to copy the LBC of movable body to new bodies.

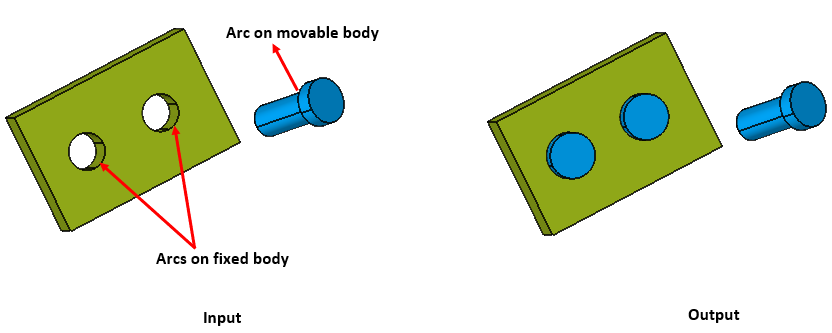

Example - CAD

Cylindrical Face

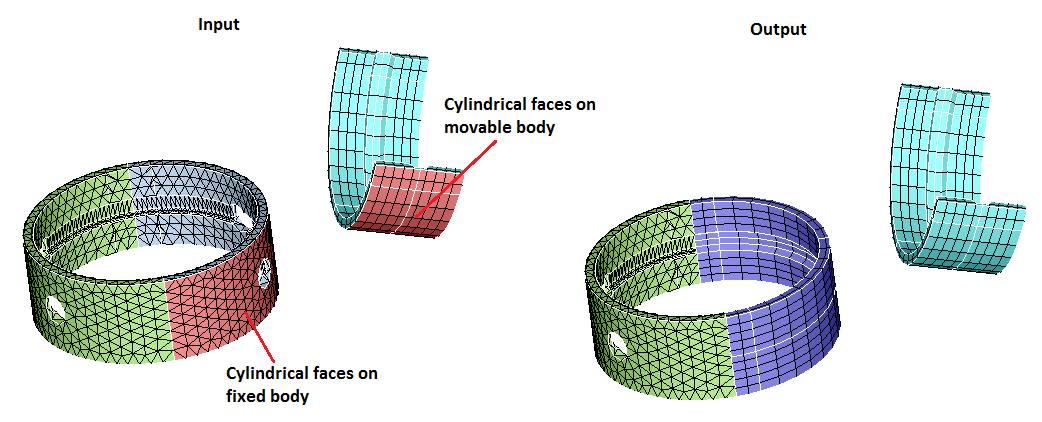

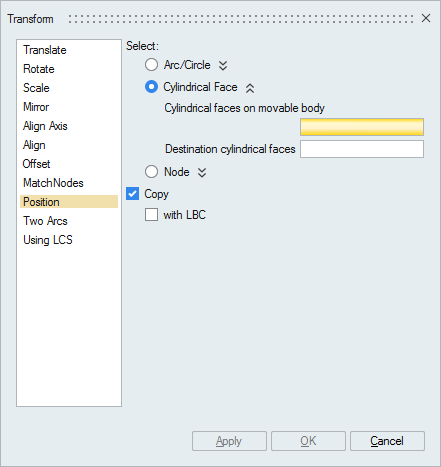

This is used to transform a body(movable) by picking cylindrical faces on movable body and cylindrical faces on fixed body such that the cylindrical faces on both bodies will match each other. Supports both Mesh and CAD bodies(except Creo bodies).

Select this toggle to take a copy of movable body. A new body will be created.

Select this toggle to copy the LBC of movable body to new bodies.

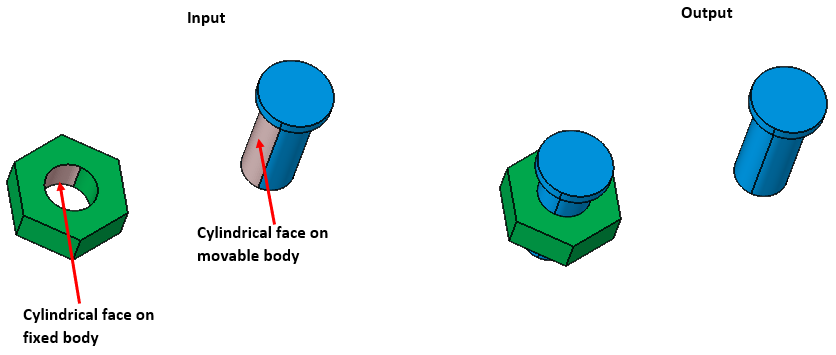

Example - CAD

Node

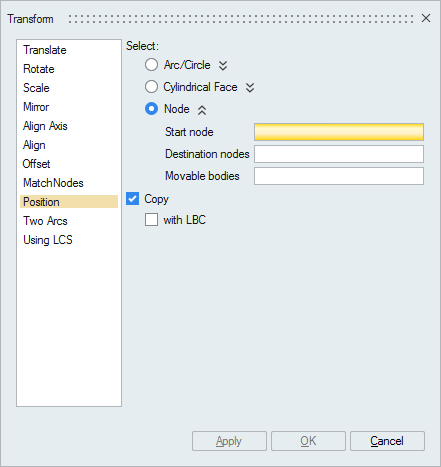

This is used to transform bodies from start node to destination nodes.

Select this toggle to take a copy of movable body. A new body will be created.

Select this toggle to copy the LBC of movable body to new bodies.
