Transform: Align

Home > Transform

This is used to transform a body(movable) based on a direction such that it will be in contact with another body(fixed). User can pick one or more movable bodies, one fixed body and define a direction to align. User can also directly pick one face from fixed body and one face from movable body and do align. It is not necessary to define the direction if faces are selected.

This is used to translate or move a face from one body(movable) such that it will be in contact with another face (fixed body). The faces should be planar.

It also supports CAD Parasolid models imported using 'Save geometry in database' option.

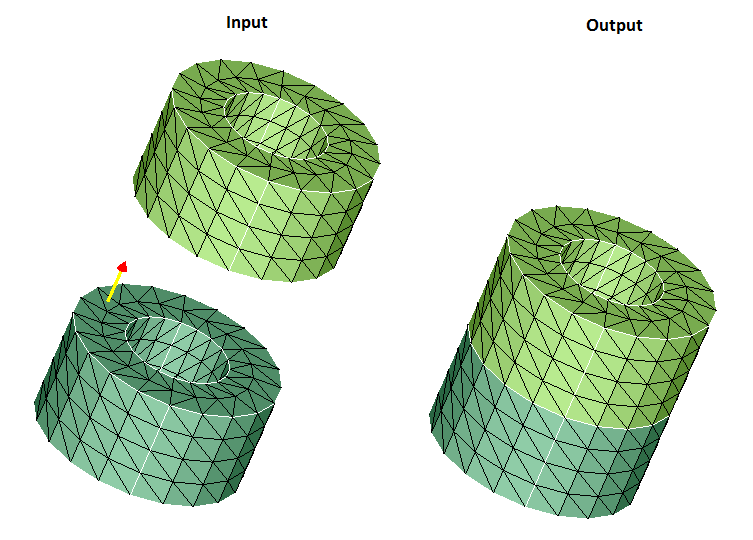

• Example (Translate body)

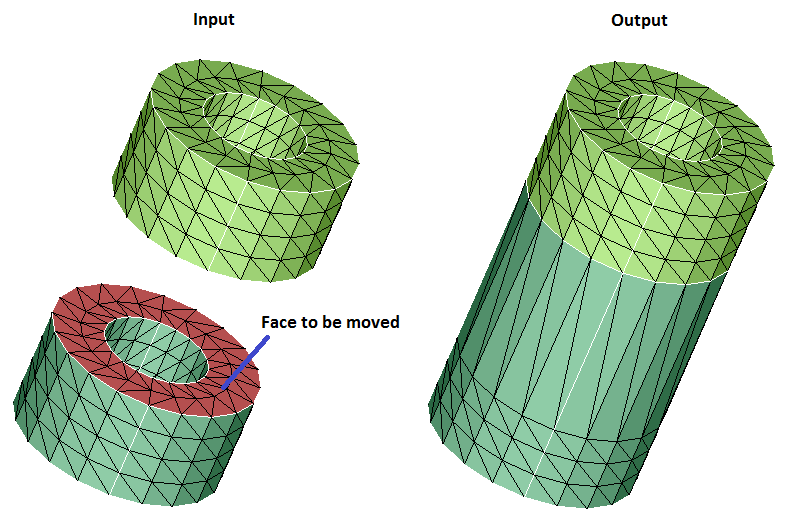

• Example (Translate face)
  • Mesh

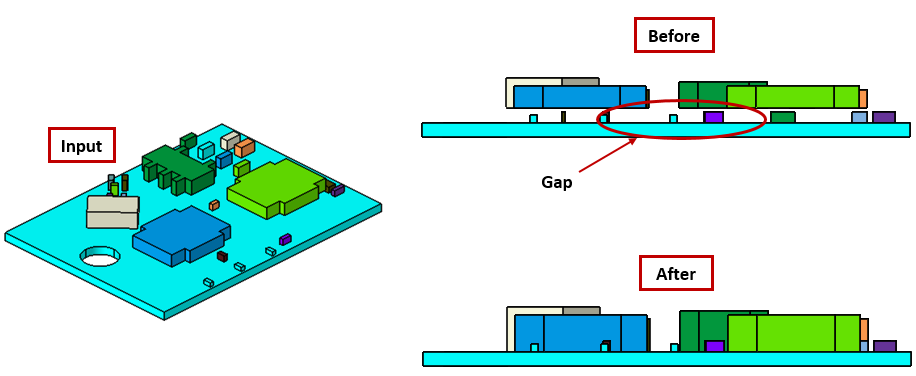

By selecting apt faces, the gap between the board and other parts on it is closed.
