updateLegendSettings

Overview

This utility is used to update the legend settings such as number of segments, format and precision of result value and its color and interval value.

Syntax

ResValue (Optional) = [];
Color (Optional) = [];
simlab.updateLegendSettings("Segment Number", "Number Format", "Precision", "ResValue", "Color","Lock Legend Values");

Use Case

• It can be used to modify the legend with the user defined settings as below:
  • Number of segment count
  • Result value display formats like float or exponential and the floating-point precision
  • Each Segment result Value
  • Each Segment Color
  • Lock the legend values. If we switch to the other loadcases/simulations, the locked legend values are preserved.
• User can update the legend settings and capture them as an image for result comparison

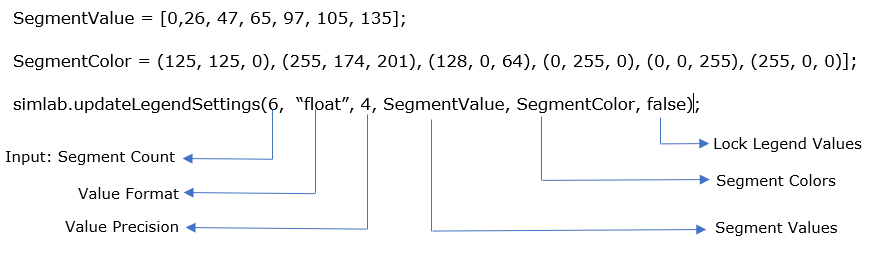

Utility Input/output

Note: Segment Result values, color and lock legend are optional, then the Legend will be updated with the model min, max and default colors.

Sample

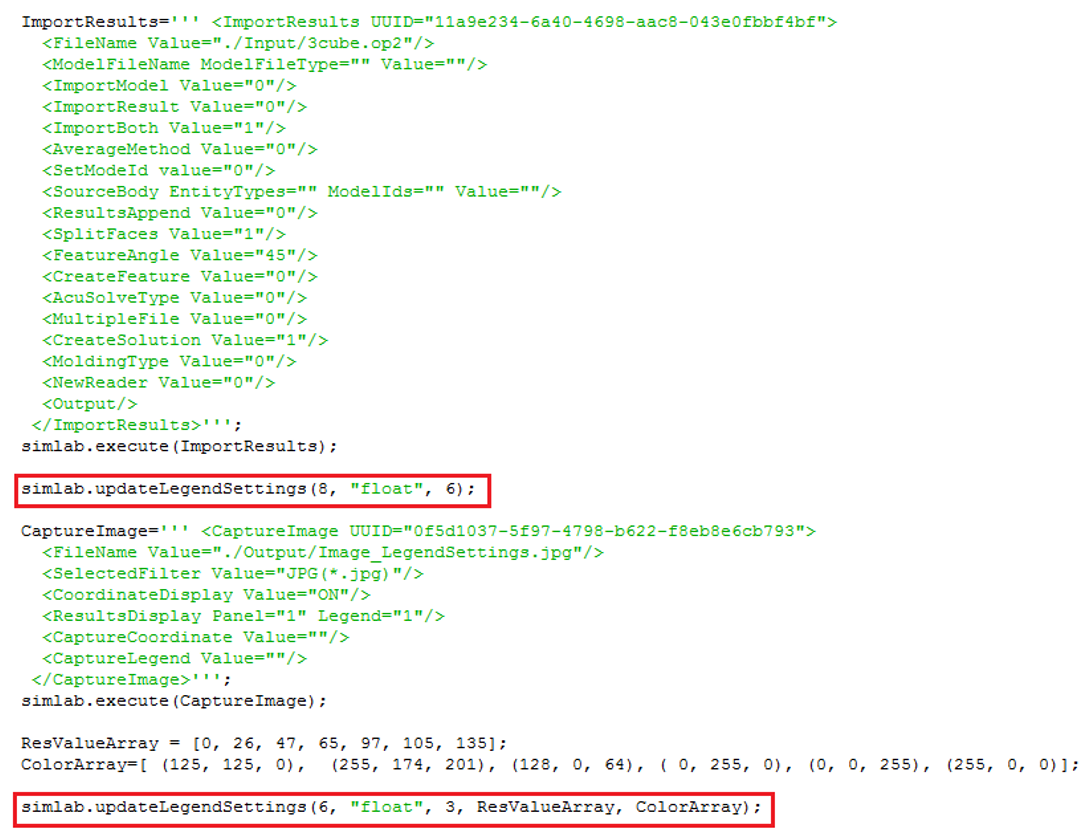

Note: Sample Script
