query_NodePath

Overview

This utility is used to obtain the Magnitude, Normal and Tangential values in a CSV file format for a given node path. Additionally, we can save the Magnitude, Normal and Tangential plots as an image.

Syntax

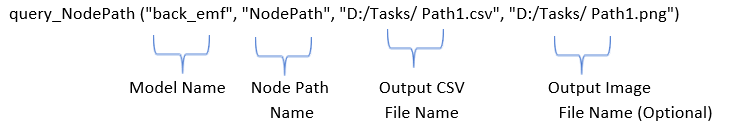

query_NodePath ("Model Name", "Created Node Path Name", "Output CSV File Name", “Output Image FileName”)

User Case

This utility is used to generate the normal and tangential plots of the defined node paths with various result components for the purpose of analyzing the results.

Utility Input/Output

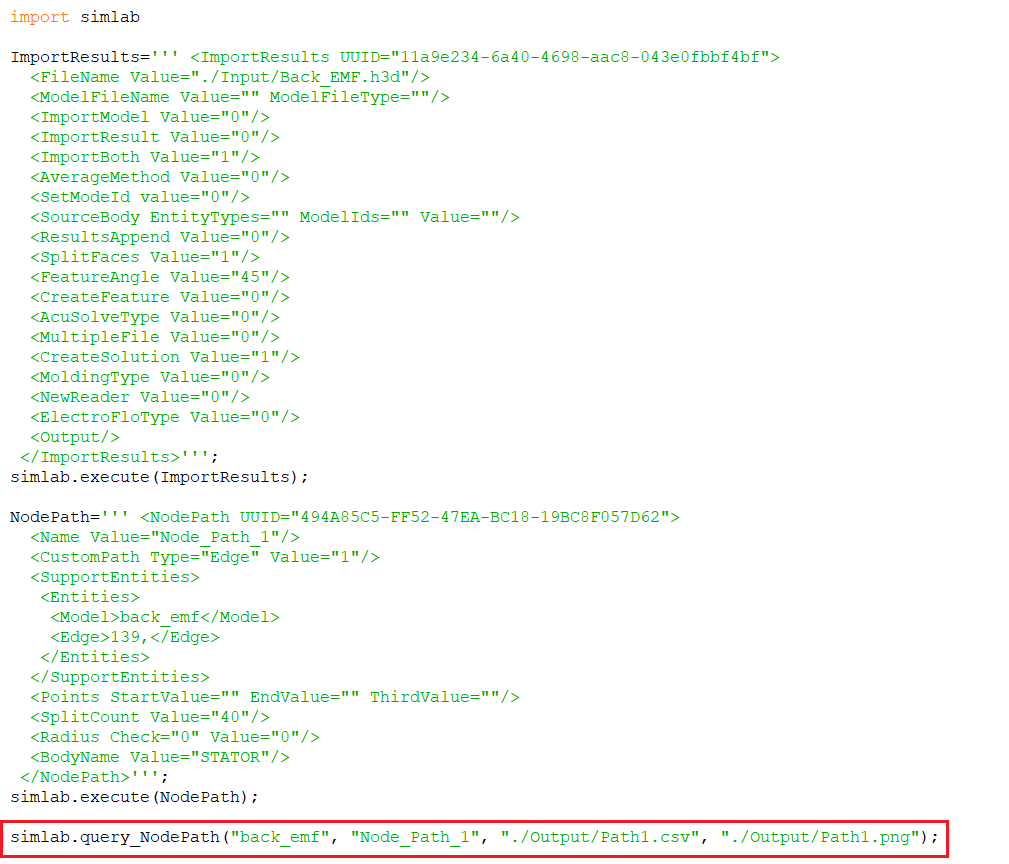

Sample

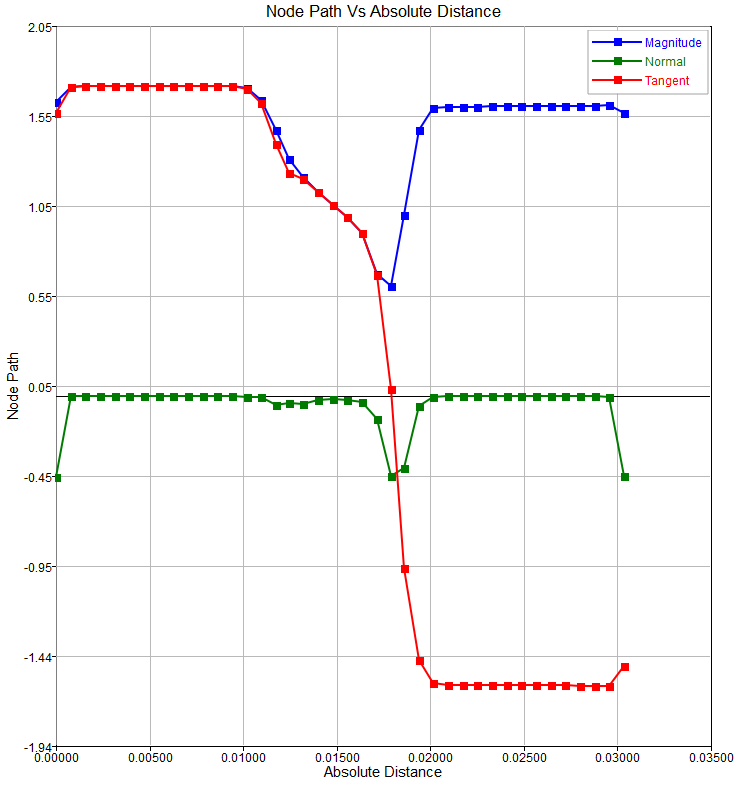

Output
