Force and Moment

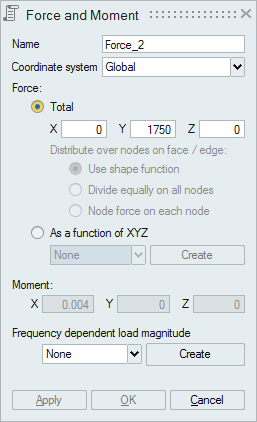

This tool is used to apply force and moment loads.
Description
- Force can be applied on nodes/edges(edge nodes)/faces(face nodes).
- When applying on edges/faces, the load can be distributed among the
edge/face nodes by the following methods
- Use Shape Function - For edges, bar element shape functions are used whereas for faces, Tri/Quad element shape functions are used.
- Divide equally on all nodes - The specified force values are divided equally among the edge/face nodes.
- Node force on each node - The specified force values are assigned directly to each of the edge/face nodes.
- As a function of XYZ option is used to apply a spatially varying force and moment load. The spatial force data has to be of the format X,Y,Z,Fx,Fy,Fz,Mx,My,Mz.
- Moment can be applied on nodes alone.

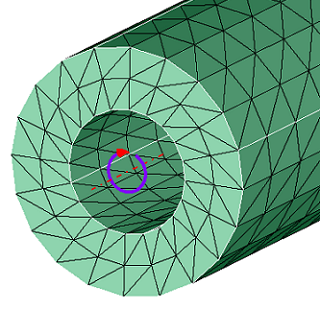

Moment:
- Force marker height reflects the magnitude of load on the
model.

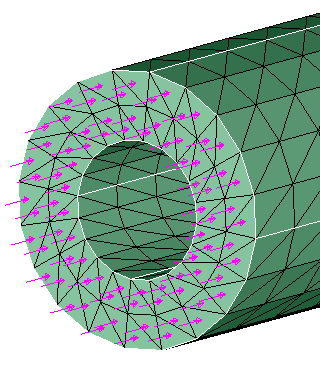

Force:
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| OptiStruct / Nastran |
FORCE, MOMENT FORCE, MOMENT, TABLED1, DLOAD, TLOAD1 {if Amplitude table is defined} |
| Abaqus | *CLOAD |
| Permas | $CONLOAD |
| Ansys | F |
| ADVENTURECluster | $Load |
| Marc | POINT LOAD |
