Edit Solution
Introduction
After to Edit the solution, all meshed bodies can be assign to the solution.
The bodies to be assigned to the solution:
- should be meshed with surface mesh or volume mesh (limitation to be left)
- should belong to the same .gda model
Note: The Transient Magnetic 2D solution is created before, to
have more details about the creation of the solution Transient Magnetic 2D,
please refer to Magneto Static solution.
Steps

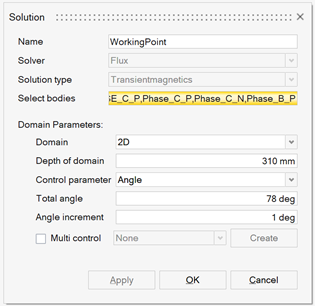

- Double click on the Solution in the Solution Browser
- Select all the meshed bodies:
The outlines of all the bodies are displayed in red.
- Click on the OK button
All the bodies are now assigned to the solution.
