Surface

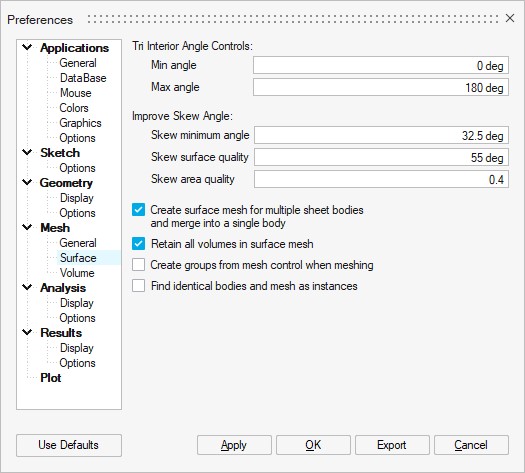

File > Preferences > Mesh > Surface

Tri Interior Angle Controls

This is used to collapse the silver faces based on the min and the max angles. Ranges for Min and Max angles:- Min angle: 0 to 25 and Max angle: 120 to 180.

Improve Skew Angle

Skew angle can be improved based on the quality set below. These values will be considered only when "Improve Skew Angle" toggle in Mesh | 2D Create | Mesh | Advance Options is enabled. Refer Improve Skew Angle.

• Skew minimum angle: Defines the minimum skew angle to be achieved in meshing.

• Skew surface quality: Defines the skew surface quality required in meshing.

• Skew area quality: Defines the skew area quality required in meshing.

Create surface mesh for multiple sheet bodies and merge into a single body

During meshing of sheet bodies if this toggle is turned ON, it will create surface mesh for all the sheet bodies and merge into a single body. If the toggle is OFF, each input sheet body will have a corresponding meshed sheet body.

Retain all volumes in surface mesh

Turn on this toggle to retain all small volumes from a body in surface mesh.

Create groups from mesh control when meshing

Turn on this toggle to create face group and edge group based on the region specified in the region mesh control.

Find identical bodies and mesh as instances

In CAD, identical bodies will be present in an assembly, but not as instances. On enabling this, bodies with identical geometry (same face, edge and vertex count) will be identified as instances and only one body will be meshed, and output body will then be copied to other locations.
