Import Results
Two results file is imported in single document is supported for h3d results file. Work flow is to import both CFD and Structural analysis results in single document.
Results Overlay
Steps to import multiple results file:
- Import first results file.

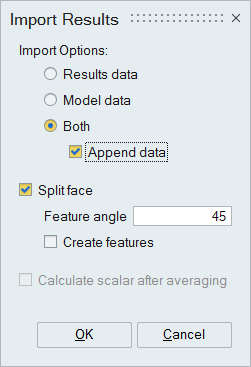

- For overlay display support, if second results file is imported, "Append data"
option is enabled in Import results dialog.
- After importing two results file, each file load cases is listed in "Select
loadcase" dialog, there is a support to select the corresponding load case
to display the results.
