Adding Doors and Windows

Create the doors and windows of the building.

Create doors and windows.
1. On the Sketch tab, in the Create group, click the New Sketch icon.
2. Click on a face of the building where you want to place a door/window.
3. Click the button if the location is correct.

  Tip: If the location is not correct, drag the Move tool to the correct location.

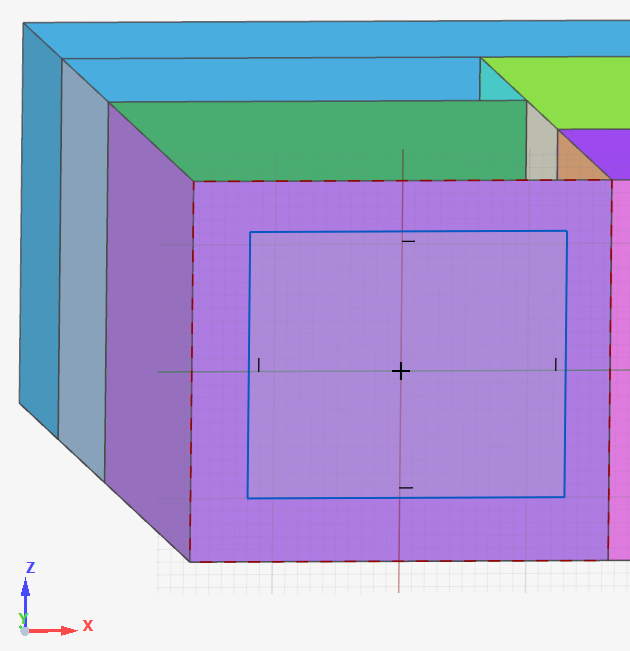

4. On the Sketch tab, in the Create group, click the Rectangles icon and create a rough outline of the door or window.
5. On the Sketch tab, in the Create group, click the Dimension icon and specify the exact lengths for the rectangle.
6. In the Assembly Browser, rename the sketch using the right-click context menu.

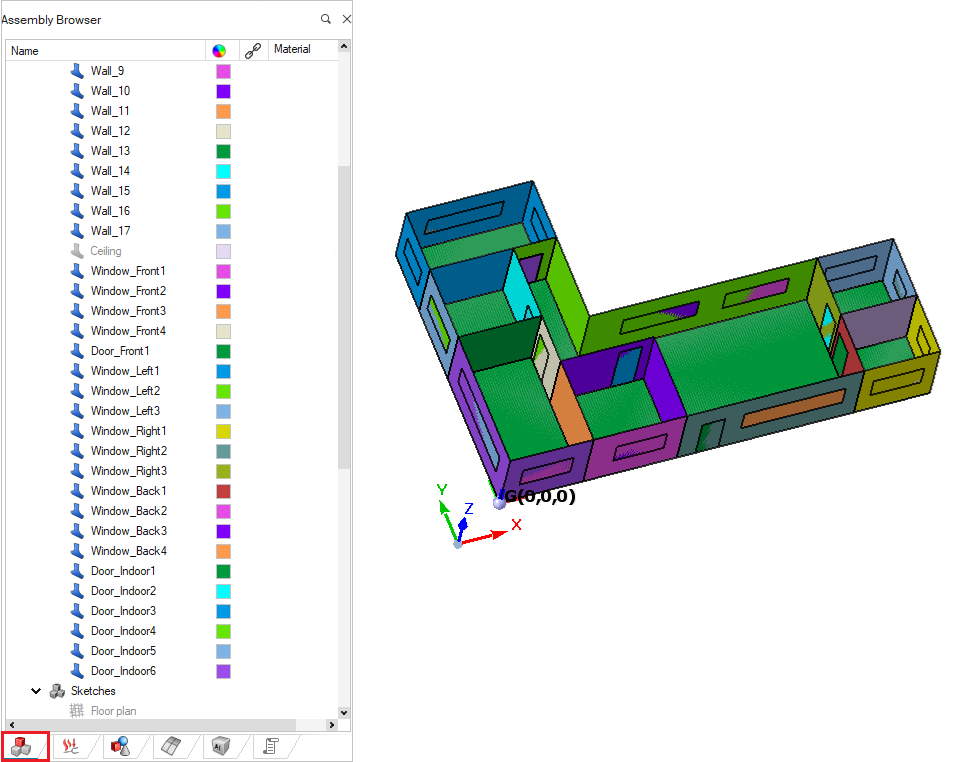

7. In the Assembly Browser, select all the doors and windows sketches, click Floor, and from the right-click context menu, click Realize as Single Sheet Body > All Faces.
Repeat Step 1 for each window and door to be added.
