Defining the Result Requests

Specify the predictions to be computed.

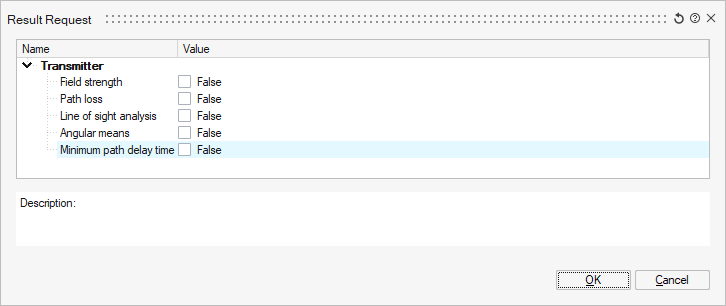

In the Solution Browser, click on Settings, and from the right-click context menu, click Result Request.
Select all the check boxes.
Click OK to close the Result Request dialog.
