Defining a Radio Coverage Solution in SimLab

Create a radio coverage solution for the model (bodies).

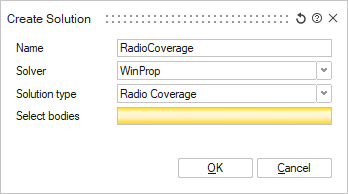

On the Solutions tab, in the Solutions group, click the Radio Coverage icon.

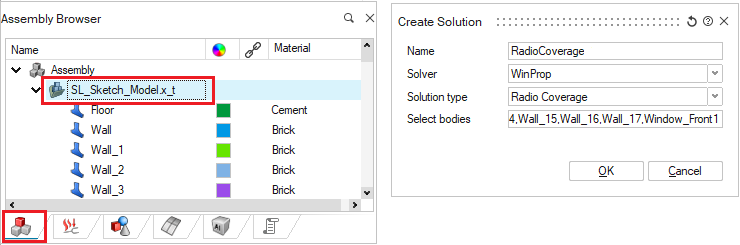

In the Assembly Browser, select model SL_Sketch_Model.x_t.
The Select bodies field is populated with the contents of the model (bodies).

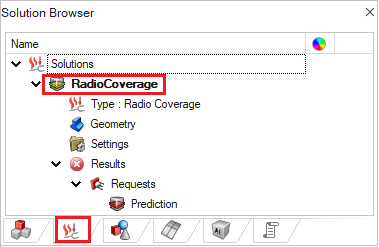

Click OK to close the Create Solution dialog.
