Adding a Prediction Plane

Define a prediction plane where the results are to be predicted when running the WinProp Solver.

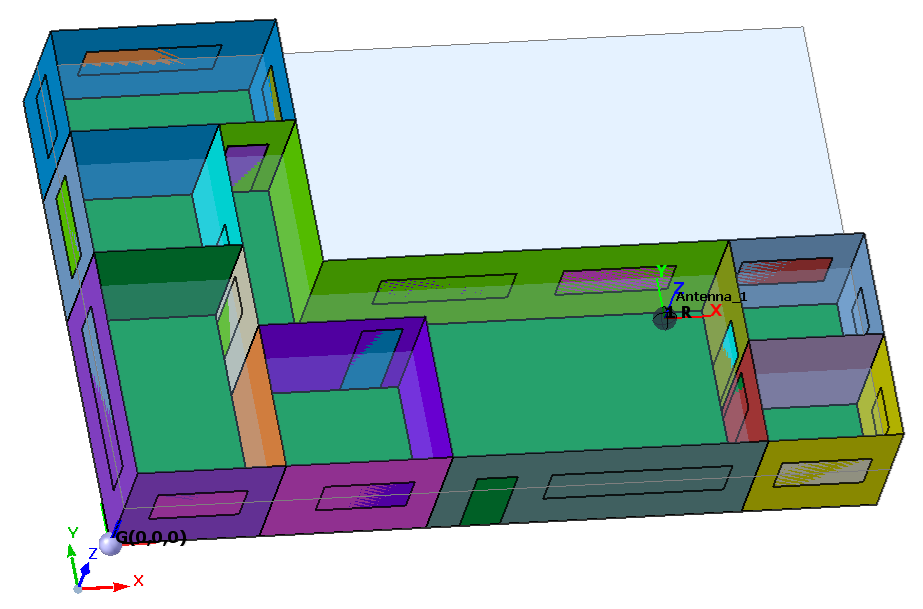

Note: A prediction plane (in XY plane) at a height of 1.5 m is created by default.

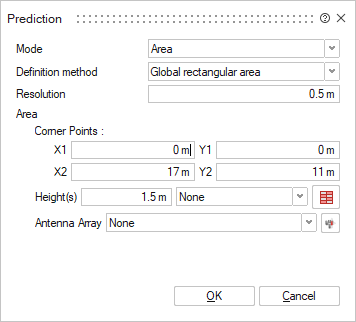

On the Analysis tab, in the Requests group, click the Prediction icon.
In the Mode drop-down list, select Global rectangular area.
In the Resolution field, specify a resolution (grid) of 0.5 m.
Under Corner Points, specify the X and Y coordinates of the prediction plane.
In the Height(s) field, specify a height of 1.5 m.
Click OK to close the Prediction dialog.
