Adding an Antenna

Add a Wi-Fi antenna to the model.

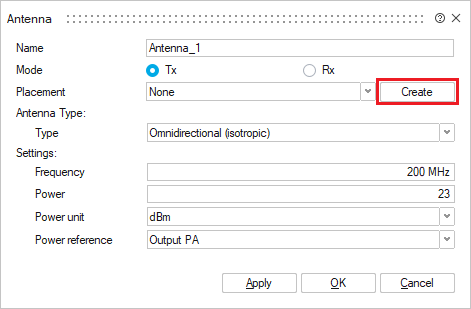

On the Analysis tab, in the Analysis group, click the Antenna icon.
Specify the location of the antenna.
1. Next to the Placement field (see image above), click Create.

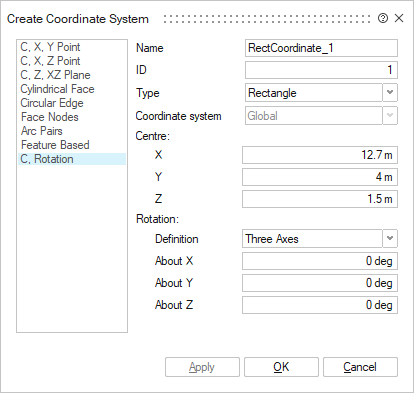

2. In the left panel, click C, Rotation.

  Note: The Move tool is displayed when clicking in the Graphics window.

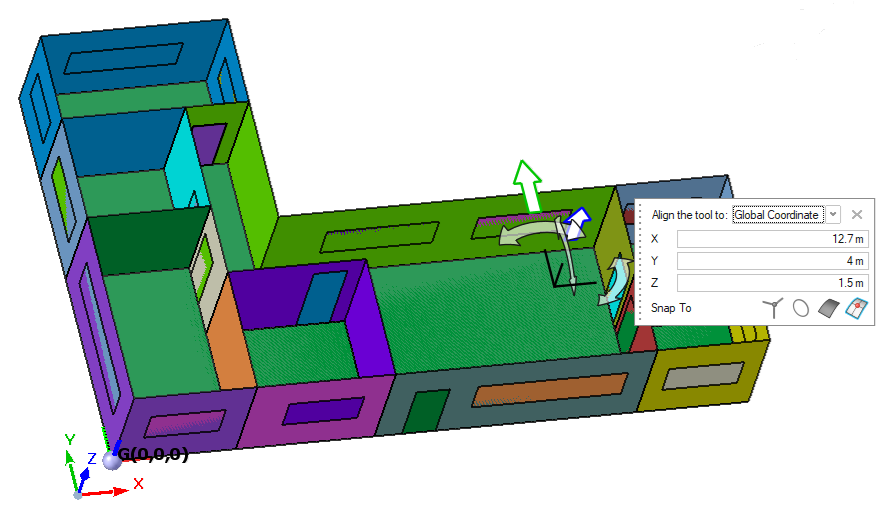

3. Click the origin of the Move tool in the Graphics window and drag to where you want to place the antenna or specify the X, Y, and Z values in the dialog.
4. Click the X to close the dialog.
5. Click OK to close the Create Coordinate System dialog.
Specify the antenna type.
1. In the Type drop-down list, select Directional.
2. Next to File name, click Select File and browse to the location of router_FF3D.ffe.
Specify the antenna settings.
1. In the Frequency field, enter 2400e6 Hz.
2. In the Power field, enter 0.5.
3. In the Power unit drop-down list, select W.
Click OK to close the Antenna dialog.

An antenna is created in the Solution Browser.
