Defining the Sketch Plane
Set up the XY plane as the sketch plane. The floor plan will be drawn on this plane.
Define the sketch plane.
-
On the Sketch tab, in the
Create group, click the
New
Sketch icon.
-

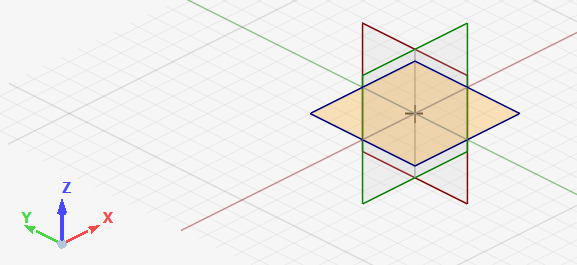

Click on the XY plane in the graphics window.

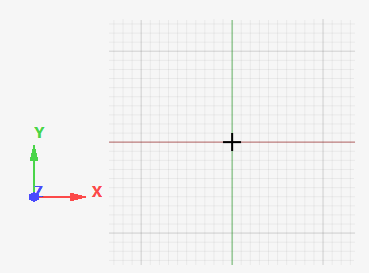

The sketch plane is now defined as the XY plane.

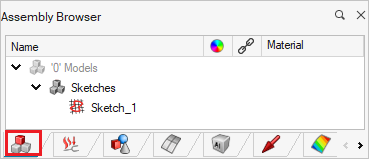

In the Assembly Browser, note that sketch, Sketch_1, was created.
