Creating the Floor

Create the floor using the sketch Floor plan.

In the Assembly Browser:

Duplicate Floor plan using the right-click context menu.
Rename the duplicate to Floor using the right-click context menu.

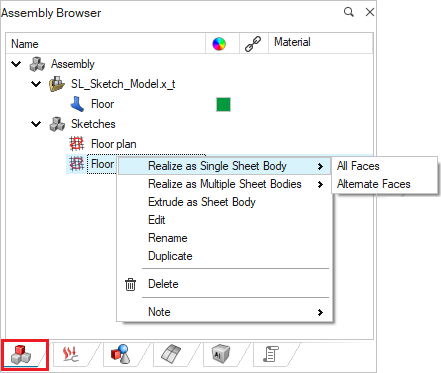

Click Floor, and from the right-click context menu, click Realize as Single Sheet Body > All Faces.

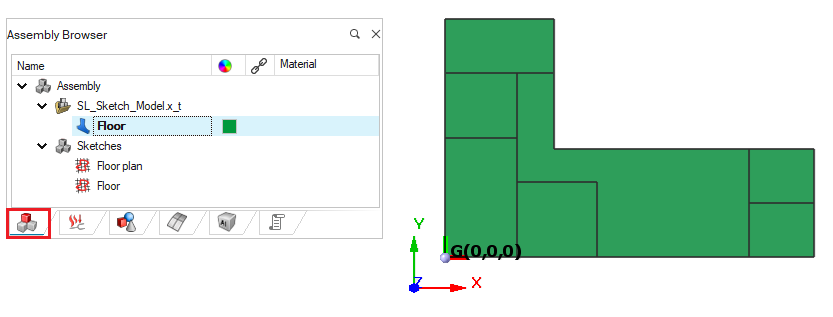

The result is the following:

Note: The silver sphere indicates the origin (0, 0, 0).
