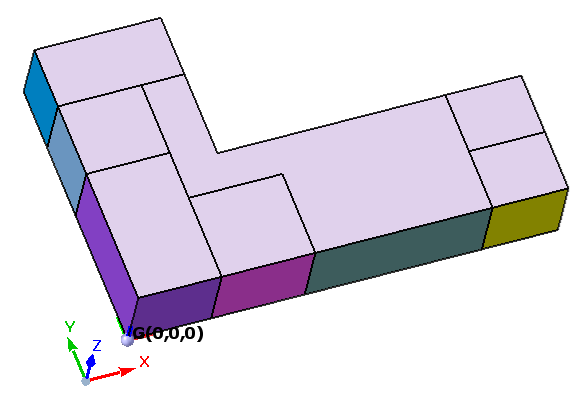

Creating the Ceiling

Create the ceiling of the building.

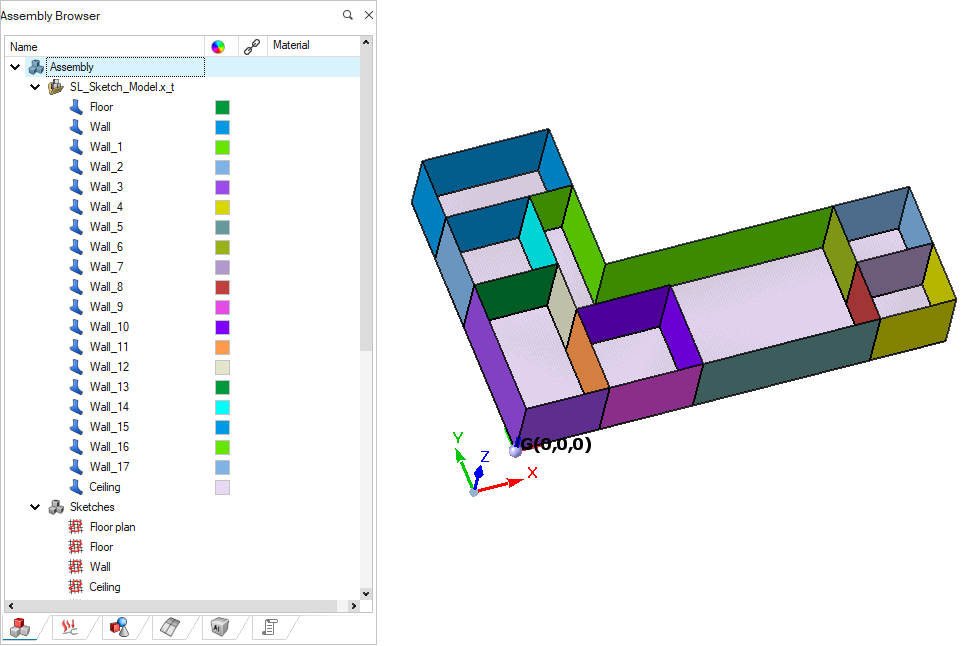

In the Assembly Browser:
1. Duplicate Floor plan using the right-click context menu.
2. Rename the duplicate to Ceiling using the right-click context menu.
3. Click Ceiling, and from the right-click context menu, click Realize as Single Sheet Body > All Faces.

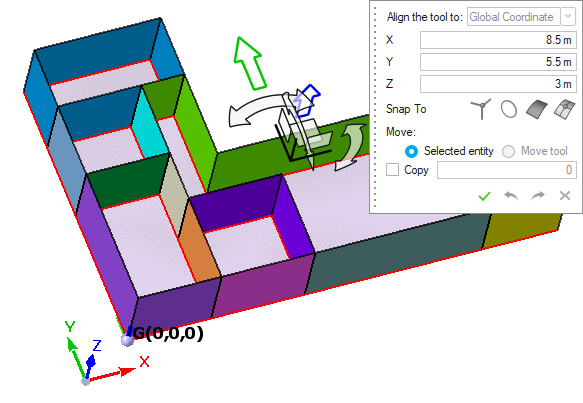

Move the ceiling (face) to the height of the building.
1. Select the ceiling (face) in the 3D view.
2. On the menu, click the Move icon.
3. In the Z field, enter a height of 3 m.
4. Click X to close the pop-up dialog (bottom-right of dialog).
